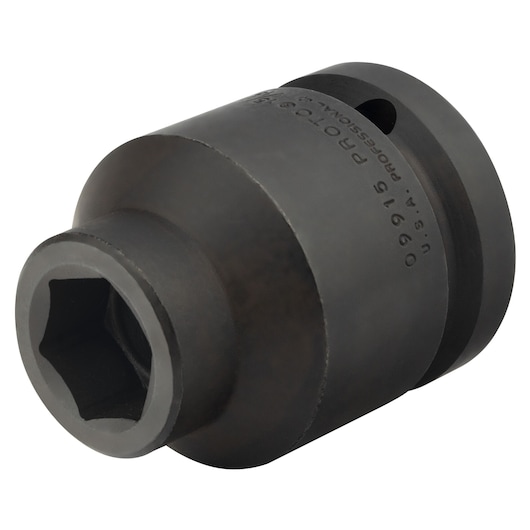

#5 Spline Drive 15/16 in. 6-Point Impact Socket
J09915
#5 Spline Drive 15/16 in. 6-Point Impact Socket
- Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
Additional Features
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners
| SKU | Product Name | Nut End Outside Diameter [Imperial] | Drive End Outside Diameter [Imperial] | Nut Depth [Imperial] | Bolt Clearance Depth [Imperial] | Overall Length [Imperial] | Product Weight [Imperial] | Purchase |
|---|---|---|---|---|---|---|---|---|
| J09944 | #5 Spline Drive 2-3/4 in. 6-Point Impact Socket | 4-1/4 in | 2-3/8 in | 1-3/4 in | 1-59/64 in | 4-1/4 in | 6.89 lbs | |
| J09941 | #5 Spline Drive 2-9/16 in. 6-Point Impact Socket | 3-3/4 in | 2-3/8 in | 1-5/8 in | 1-55/64 in | 4-3/8 in | 6.45 lbs | |
| J09934 | #5 Spline Drive 2-1/8 in. 6-Point Impact Socket | 3-1/2 in | 2-3/8 in | 1-37/64 in | 2-1/8 in | 3-11/16 in | 4.63 lbs | |
| J09921 | #5 Spline Drive 1-5/16 in. 6-Point Impact Socket | 2-3/8 in | 2-3/8 in | 53/64 in | 1-5/8 in | 3-1/4 in | 2.23 lbs | |
| J09935 | #5 Spline Drive 2-3/16 in. 6-Point Impact Socket | 3-1/2 in | 2-3/8 in | 1-3/8 in | 1-39/64 in | 3-3/4 in | 4.28 lbs | |
| J09939 | #5 Spline Drive 2-7/16 in. 6-Point Impact Socket | 3-3/4 in | 2-3/8 in | 1-25/32 in | 2-13/16 in | 4 in | 5.29 lbs | |
| J09928 | #5 Spline Drive 1-3/4 in. 6-Point Impact Socket | 2-15/16 in | 2-3/8 in | 1-7/64 in | 1-27/64 in | 3-47/64 in | 3.11 lbs | |
| J09929 | #5 Spline Drive 1-13/16 in. 6-Point Impact Socket | 3-1/8 in | 2-3/8 in | 1-1/8 in | 1-27/64 in | 3-7/16 in | 3.27 lbs | |
| J09919 | #5 Spline Drive 1-3/16 in. 6-Point Impact Socket | 1-7/8 in | 2-3/8 in | 3/4 in | 1-1/2 in | 3-1/4 in | 2.1 lbs | |
| J09947 | #5 Spline Drive 2-15/16 in. 6-Point Impact Socket | 4-1/2 in | 2-3/8 in | 2-5/32 in | 3 in | 4-13/16 in | 8.22 lbs | |
| J09918 | #5 Spline Drive 1-1/8 in. 6-Point Impact Socket | 1-7/8 in | 2-3/8 in | 23/32 in | 1-1/2 in | 3-1/4 in | 2.09 lbs | |
| J09926 | #5 Spline Drive 1-5/8 in. 6-Point Impact Socket | 2-3/4 in | 2-3/8 in | 1-1/64 in | 1-1/64 in | 3-5/8 in | 2.94 lbs | |
| J09915 | #5 Spline Drive 15/16 in. 6-Point Impact Socket | 1-5/8 in | 2-3/8 in | 19/32 in | 1-1/2 in | 3 in | 1.94 lbs | |
| J09923 | #5 Spline Drive 7/16 in. 6-Point Impact Socket | 2-1/2 in | 2-3/8 in | 29/32 in | 29/32 in | 3-3/8 in | 2.43 lbs | |
| J09920 | #5 Spline Drive 1-1/4 in. 6-Point Impact Socket | 2-3/8 in | 2-3/8 in | 25/32 in | 1-1/2 in | 3-1/4 in | 2.21 lbs | |
| J09936 | #5 Spline Drive 2-1/4 in. 6-Point Impact Socket | 3-1/2 in | 2-3/8 in | 1-1/2 in | 1-23/32 in | 4-3/16 in | 4.52 lbs | |
| J09927 | #5 Spline Drive 1-11/16 in. 6-Point Impact Socket | 2-15/16 in | 2-3/8 in | 1-27/64 in | 2-1/8 in | 3-5/8 in | 2.95 lbs | |
| J09950 | #5 Spline Drive 3-1/8 in. 6-Point Impact Socket | 4-3/4 in | 2-3/8 in | 2 in | 2-13/64 in | 4-39/64 in | 7.95 lbs | |
| J09932 | #5 Spline Drive 2 in. 6-Point Impact Socket | 3-1/4 in | 2-3/8 in | 1-1/4 in | 1-15/32 in | 3-17/32 in | 3.66 lbs | |
| J09922 | #5 Spline Drive 1-3/8 in. 6-Point Impact Socket | 2-3/8 in | 2-3/8 in | 55/64 in | 1-5/8 in | 3-3/8 in | 2.23 lbs | |
| J09925 | #5 Spline Drive 1-9/16 in. 6-Point Impact Socket | 2-3/4 in | 2-3/8 in | 63/64 in | 63/64 in | 3-1/2 in | 2.69 lbs | |
| J09930 | #5 Spline Drive 1-7/8 in. 6-Point Impact Socket | 3-1/8 in | 2-3/8 in | 1-3/16 in | 1-1/2 in | 3-17/32 in | 3.25 lbs | |
| J09938 | #5 Spline Drive 2-3/8 in. 6-Point Impact Socket | 3-3/4 in | 2-3/8 in | 1-11/16 in | 2-7/16 in | 3-57/64 in | 4.8 lbs | |
| J09931 | #5 Spline Drive 1-15/16 in. 6-Point Impact Socket | 3-1/8 in | 2-3/8 in | 1-1/4 in | 1-1/2 in | 3-17/32 in | 3.43 lbs | |
| J09942 | #5 Spline Drive 2-5/8 in. 6-Point Impact Socket | 4-1/8 in | 2-3/8 in | 1-59/64 in | 2-13/16 in | 4-1/2 in | 6.68 lbs | |
| J09948 | #5 Spline Drive 3 in. 6-Point Impact Socket | 4-1/2 in | 2-3/8 in | 2 in | 2-13/64 in | 4-39/64 in | 7.93 lbs | |
| J09924 | #5 Spline Drive 1-1/2 in. 6-Point Impact Socket | 2-1/2 in | 2-3/8 in | 15/16 in | 15/16 in | 3-3/8 in | 2.46 lbs |
