J10014S

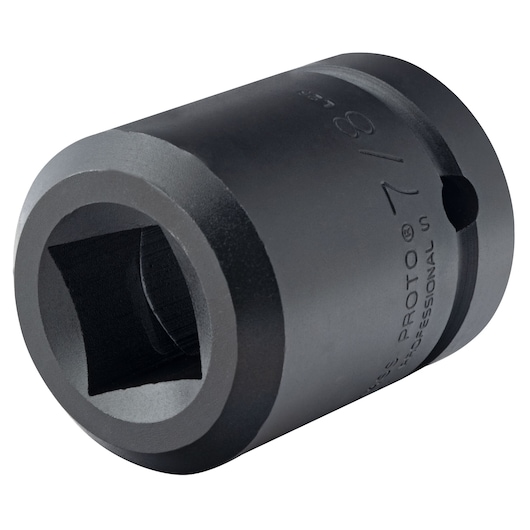

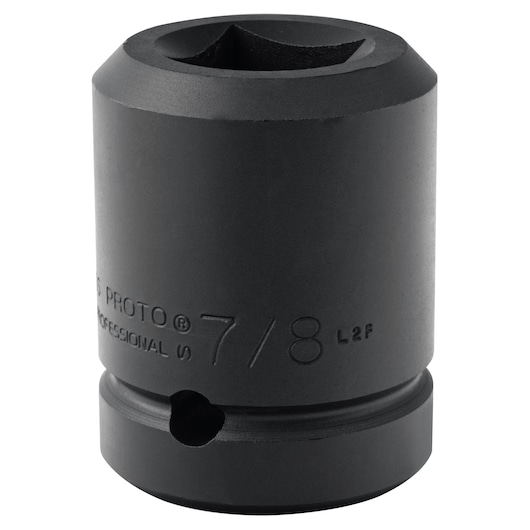

1 in. Drive 7/8 in. 8-Point Impact Socket
1 in. Drive 7/8 in. 8-Point Impact Socket
1 in. Drive 7/8 in. 8-Point Impact Socket
J10014S

1 in. Drive 7/8 in. 8-Point Impact Socket

  • Drive end chamfer and four detents help provide quick positive engagement with drive tool on any of the socket drive walls
  • Tight tolerances for snug fit on fastener
  • Large clearance holes, concentric opening and nut end chamfer make it easy to position socket on fasteners
View more features

Additional Features

  • Made from high-strength steel to help minimize wall thickness and provide access to fasteners in recesses and where nuts and bolts protrude
  • Impact sockets are used wherever powered drive tools are used to install or remove fasteners
  • Impact sockets are designed to withstand the high torque and force associated with impact tools in repetitive application
  • Features two through holes and a groove to accept a Proto® Retaining Ring or pin and O-ring to help secure the socket to the drive tool anvil
SKU Product Name Nut End Outside Diameter [Imperial] Drive End Outside Diameter [Imperial] Nut Depth [Imperial] Bolt Clearance Depth [Imperial] Overall Length [Imperial] Product Weight [Imperial] Crush Retaining Ring O-Ring Retaining Pin Purchase
J10015S 1 in. Drive 15/16 in. 8-Point Impact Socket 2 in 2 in 5/8 in 1-3/8 in 2-5/8 in 1.52 lbs JRR10028 J10000R1 J10000P1
J10030S 1 in. Drive 7/8 in. 8-Point Impact Socket 3-13/32 in 3-13/32 in 15/16 in 1-7/8 in 3-1/2 in 4.17 lbs JRR10034 J10000R2 J10000P2
J10024S 1 in. Drive 7/8 in. 8-Point Impact Socket 2-13/16 in 2-13/16 in 13/16 in 1-5/8 in 2-13/16 in 2.47 lbs JRR10028 J10000R1 J10000P1
J10023S 1 in. Drive 7/8 in. 8-Point Impact Socket 2-13/16 in 2-13/16 in 13/16 in 1-5/8 in 2-15/16 in 2.54 lbs JRR10028 J10000R1 J10000P1
J10035S 1 in. Drive 7/8 in. 8-Point Impact Socket 3-7/8 in 3-7/8 in 1 in 1-15/16 in 3-1/2 in 5.28 lbs JRR10034 J10000R2 J10000P2
J10014S 1 in. Drive 7/8 in. 8-Point Impact Socket 2 in 2 in 5/8 in 1-3/8 in 2-5/8 in 1.33 lbs JRR10028 J10000R1 J10000P1
J10027S 1 in. Drive 7/8 in. 8-Point Impact Socket 3-3/16 in 3-3/16 in 7/8 in 1-3/4 in 3-1/2 in 4.06 lbs JRR10032 J10000R2 J10000P2
J10028S 1 in. Drive 7/8 in. 8-Point Impact Socket 3-3/16 in 3-3/16 in 7/8 in 1-3/4 in 3-1/2 in 4.29 lbs JRR10034 J10000R2 J10000P2
J10018S 1 in. Drive 1-1/8 in. 8-Point Impact Socket 2-7/16 in 2-7/16 in 23/32 in 1-3/8 in 2-13/16 in 1.85 lbs JRR10028 J10000R1 J10000P1
J10022S 1 in. Drive 7/8 in. 8-Point Impact Socket 2-1/2 in 2-1/2 in 25/32 in 1-5/8 in 2-13/16 in 1.97 lbs JRR10028 J10000R1 J10000P1
J10020S 1 in. Drive 7/8 in. 8-Point Impact Socket 2-7/16 in 2-7/16 in 11/16 in 1-1/2 in 2-13/16 in 1.92 lbs JRR10028 J10000R1 J10000P1
J10019S 1 in. Drive 1-3/16 in. 8-Point Impact Socket 2-1/4 in 2-3/32 in 23/32 in 1-3/8 in 2-11/16 in 1.74 lbs JRR10028 J10000R1 J10000P1
J10026S 1 in. Drive 1-5/8 in. 8-Point Impact Socket 3-3/32 in 3-3/32 in 13/16 in 1-5/8 in 3-1/2 in 3.81 lbs JRR10032 J10000R2 J10000P2
J10016S 1 in. Drive 1 in. 8-Point Impact Socket 2-3/32 in 2-3/32 in 11/16 in 1-3/8 in 2-13/16 in 1.61 lbs JRR10028 J10000R1 J10000P1
J10032S 1 in. Drive 2 in. 8-Point Impact Socket 3-1/2 in 3-1/2 in 1 in 1-15/16 in 3-1/2 in 4.42 lbs JRR10034 J10000R2 J10000P2
J10029S 1 in. Drive 1-13/16 in. 8-Point Impact Socket 3-3/8 in 3-3/8 in 7/8 in 1-7/8 in 3-1/2 in 4.16 lbs JRR10034 J10000R2 J10000P2
J10021S 1 in. Drive 7/8 in. 8-Point Impact Socket 2-1/2 in 2-1/2 in 25/32 in 1-1/2 in 2-13/16 in 2.07 lbs JRR10028 J10000R1 J10000P1
