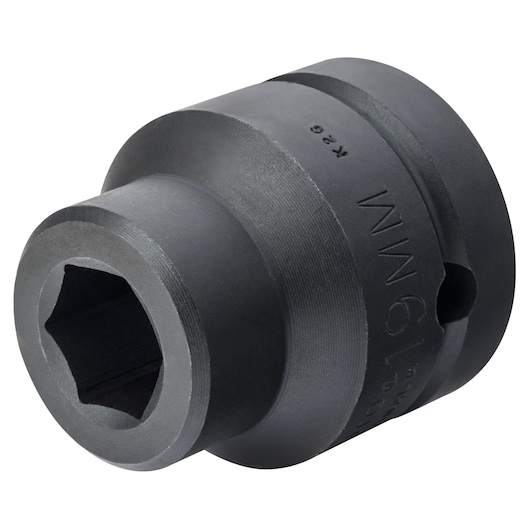

1 in. Drive 19mm 6-Point Impact Socket
J10019M
1 in. Drive 19mm 6-Point Impact Socket
- Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
Additional Features
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners
- Stamped size for easy reference
- Side locking hole
| SKU | Product Name | Nut End Outside Diameter [in] | Drive End Outside Diameter [in] | Nut Depth [in] | Bolt Clearance Depth [in] | Overall Length [in] | Product Weight [lbs] | Purchase |
|---|---|---|---|---|---|---|---|---|
| J10019M | 1 in. Drive 19mm 6-Point Impact Socket | 1-7/16 | 2-1/8 | 39/64 | 57/64 | 2-13/32 | 1.1 | |
| J10022M | 1 in. Drive 22mm 6-Point Impact Socket | 1-35/64 | 2-1/8 | 21/32 | 1.0 | 2-13/32 | 1.09 | |
| J10024M | 1 in. Drive 24mm 6-Point Impact Socket | 1-39/64 | 2-1/8 | 3/4 | 1.0 | 2-13/32 | 1.06 | |
| J10027M | 1 in. Drive 27mm 6-Point Impact Socket | 1-49/64 | 2-1/8 | 7/8 | 1-13/64 | 2-19/32 | 1.27 | |
| J10028M | 1 in. Drive 28mm 6-Point Impact Socket | 1-13/16 | 2-1/8 | 7/8 | 1-13/64 | 2-19/32 | 1.27 | |
| J10030M | 1 in. Drive 30mm 6-Point Impact Socket | 1-7/8 | 2-1/8 | 7/8 | 1-13/64 | 2-19/32 | 1.58 | |
| J10032M | 1 in. Drive 32mm 6-Point Impact Socket | 2-1/8 | 2-1/8 | 15/16 | 1-13/64 | 2-19/32 | 1.51 | |
| J10033M | 1 in. Drive 33mm 6-Point Impact Socket | 2-1/8 | 2-1/8 | 1.0 | 1-1/4 | 2-3/4 | 1.48 | |
| J10036M | 1 in. Drive 36mm 6-Point Impact Socket | 2-1/4 | 2-1/8 | 27/32 | 1-13/64 | 2-7/16 | 1.73 | |
| J10038M | 1 in. Drive 38mm 6-Point Impact Socket | 2-25/64 | 2-25/64 | 1-13/32 | 1-1/4 | 2-45/64 | 1.91 | |
| J10041M | 1 in. Drive 41mm 6-Point Impact Socket | 2-31/64 | 2-13/32 | 1-1/8 | 1-1/4 | 2-13/16 | 2.07 | |
| J10046M | 1 in. Drive 46mm 6-Point Impact Socket | 2-25/32 | 2-13/32 | 1-5/16 | 1-13/32 | 2-13/16 | 2.63 | |
| J10050M | 1 in. Drive 50mm 6-Point Impact Socket | 3.0 | 2-13/32 | 1-7/16 | 1-1/2 | 3 | 3.2 | |
| J10054M | 1 in. Drive 54mm 6-Point Impact Socket | 3-3/32 | 2-13/32 | 1-19/32 | 1-1/2 | 3 | 3.33 | |
| J10055M | 1 in. Drive 55mm 6-Point Impact Socket | 3-1/4 | 2-13/32 | 1-9/16 | 1-9/16 | 3-1/8 | 3.71 | |
| J10060M | 1 in. Drive 60mm 6-Point Impact Socket | 3-3/4 | 2-13/32 | 1-9/16 | 1-53/64 | 3-3/8 | 3.91 | |
| J10065M | 1 in. Drive 65mm 6-Point Impact Socket | 3-3/4 | 2-13/32 | 1-9/16 | 1-13/16 | 3-1/2 | 4.93 | |
| J10070M | 1 in. Drive 70mm 6-Point Impact Socket | 3-13/16 | 2-3/4 | 1-25/32 | 2-1/4 | 3-53/64 | 5.02 | |
| J10075M | 1 in. Drive 75mm 6-Point Impact Socket | 4.0 | 2-3/4 | 2-13/64 | 2-11/16 | 3-27/32 | 6.15 | |
| J10080M | 1 in. Drive 80mm 6-Point Impact Socket | 4-13/64 | 2-3/4 | 2-21/64 | 2-13/16 | 4 | 6.59 |
