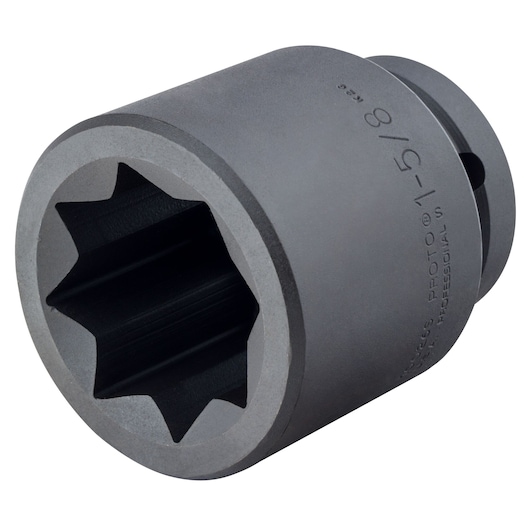

1 in. Drive 1-5/8 in. 8-Point Impact Socket
J10026S
1 in. Drive 1-5/8 in. 8-Point Impact Socket
- Drive end chamfer and four detents help provide quick positive engagement with drive tool on any of the socket drive walls
- Tight tolerances for snug fit on fastener
- Large clearance holes, concentric opening and nut end chamfer make it easy to position socket on fasteners
Additional Features
- Made from high-strength steel to help minimize wall thickness and provide access to fasteners in recesses and where nuts and bolts protrude
- Impact sockets are used wherever powered drive tools are used to install or remove fasteners
- Impact sockets are designed to withstand the high torque and force associated with impact tools in repetitive application
- Features two through holes and a groove to accept a Proto® Retaining Ring or pin and O-ring to help secure the socket to the drive tool anvil
| SKU | Product Name | Nut End Outside Diameter [Imperial] | Drive End Outside Diameter [Imperial] | Nut Depth [Imperial] | Bolt Clearance Depth [Imperial] | Overall Length [Imperial] | Product Weight [Imperial] | Crush Retaining Ring | O-Ring | Retaining Pin | Purchase |
|---|---|---|---|---|---|---|---|---|---|---|---|
| J10026S | 1 in. Drive 1-5/8 in. 8-Point Impact Socket | 3-3/32 in | 3-3/32 in | 13/16 in | 1-5/8 in | 3-1/2 in | 3.81 lbs | JRR10032 | J10000R2 | J10000P2 | |
| J10029S | 1 in. Drive 1-13/16 in. 8-Point Impact Socket | 3-3/8 in | 3-3/8 in | 7/8 in | 1-7/8 in | 3-1/2 in | 4.16 lbs | JRR10034 | J10000R2 | J10000P2 |
