J1208SPL
1/4 in. Full Polish Combination Wrench
PROTO J1208SPL combination wrench, 1/4 inch, polished chrome, open-end and box-end, side view on white background.

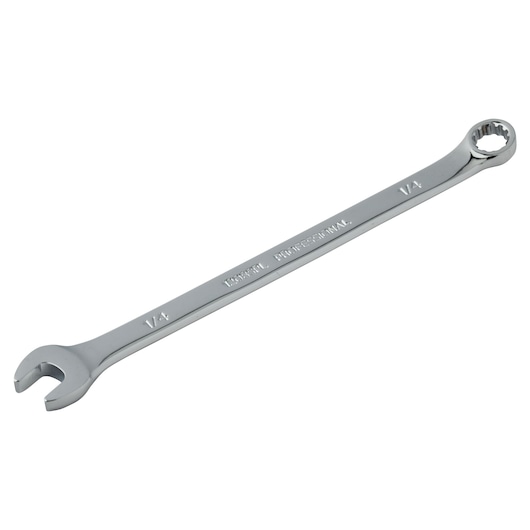

PROTO J1208SPL chrome combination wrench 1/4 inch, front angle, tool photography
J1208SPL

1/4 in. Full Polish Combination Wrench

  • Proto Spline Tools are designed to service high tensile strength fasteners used widely on military and commercial aircraft and in heavy machinery applications where vibration is prevalent. They are also used in automotive and industrial areas where high performance torque needs to be achieved
  • Spline fasteners help tighten high strength bolts to high torque loads
  • They help lower the force required to turn standard fasteners by allowing the torque load to be moved away from the corners, helping prevent fastener rounding. They also turn fasteners with damaged corners
View more features

Additional Features

  • Spline helps reduce foreign object debris (FOD) by having a precise fit between the fastening tool and its fastener
  • Full polish finish provides corrosion resistance and an easy to clean surface
  • Anti-Slip Design (ASD) open end
SKU Product Name Throat Depth [in] Outside Head Width 1 [in] Head Thickness 1 [in] Outside Head Width 2 [in] Head Thickness 2 [in] Overall Length [in] Product Weight [lbs] Purchase
J1208SPL 1/4 in. Full Polish Combination Wrench 17/64 35/64 3/16 25/64 11/64 4-29/32 0.06
J1209SPL 9/32 in. Full Polish Combination Wrench 19/64 39/64 3/16 7/16 11/64 5-5/32 0.07
J1210SPL 5/16 in. Full Polish Combination Wrench 21/64 11/16 11/64 31/64 3/16 5-27/64 0.08
J1211SPL 11/32 in. Full Polish Combination Wrench 23/64 25/32 3/16 35/64 7/32 5-21/32 0.09
J1212SPL 3/8 in. Full Polish Combination Wrench 13/32 27/32 1/4 37/64 15/64 5-59/62 0.1
J1214SPL 7/16 in. Full Polish Combination Wrench 15/32 15/16 9/32 43/64 17/64 6-29/32 0.14
J1216SPL 1/2 in. Full Polish Combination Wrench 17/32 1-5/64 1/4 47/64 5/16 7-29/32 0.2
J1218SPL 9/16 in. Full Polish Combination Wrench 19/32 1-13/64 9/32 13/16 11/32 8-53/64 0.26
J1220SPL 5/8 in. Full Polish Combination Wrench 43/64 1-21/64 19/64 57/64 3/8 9-35/64 0.34
J1222SPL 11/16 in. Full Polish Combination Wrench 47/64 1-7/16 5/16 63/64 13/32 10-19/64 0.42
J1224SPL 3/4 in. Full Polish Combination Wrench 51/64 1-37/64 11/32 1-5/64 15/32 11-3/64 0.5
J1226SPL 13/16 in. Full Polish Combination Wrench 55/64 1-23/32 17/32 1-3/16 33/64 11-53/64 0.59
J1228SPL 7/8 in. Full Polish Combination Wrench 15/16 1-27/32 3/8 1-1/4 17/32 12-17/32 0.73
J1230SPL 15/16 in. Full Polish Combination Wrench 1 1-31/32 19/32 1-23/64 37/64 13-5/16 0.9
J1232SPL 1 in. Full Polish Combination Wrench 1-1/16 2-3/32 19/32 1-29/64 37/64 14-1/16 1.1
