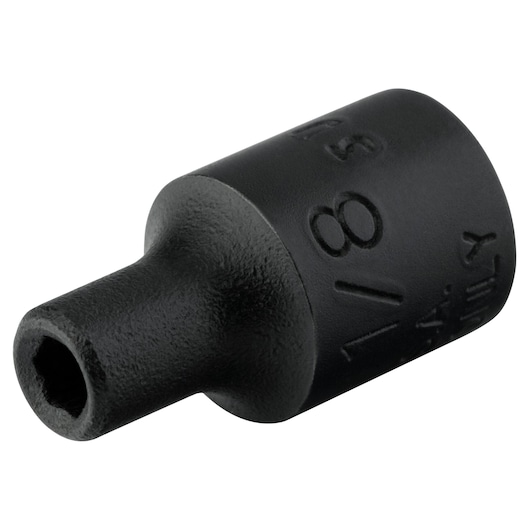

1/4 in. Drive 1/8 in. 6-Point Black Oxide Socket
J4704B
1/4 in. Drive 1/8 in. 6-Point Black Oxide Socket
- Proto® 6 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
Additional Features
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners
| SKU | Product Name | Nut End Outside Diameter [Imperial] | Drive End Outside Diameter [Imperial] | Nut Depth [Imperial] | Bolt Clearance Depth [Imperial] | Overall Length [Imperial] | Product Weight [Imperial] | Purchase |
|---|---|---|---|---|---|---|---|---|
| J4706B | 1/4 in. Drive 3/16 in. 6-Point Black Oxide Socket | 5/16 in | 31/64 in | 13/64 in | 11/32 in | 7/8 in | 0.03 lbs | |
| J4707B | 1/4 in. Drive 7/32 in. 6-Point Black Oxide Socket | 11/32 in | 31/64 in | 13/64 in | 11/32 in | 7/8 in | 0.02 lbs | |
| J4714B | 1/4 in. Drive 7/16 in. 6-Point Black Oxide Socket | 5/8 in | 5/8 in | 23/64 in | 17/32 in | 7/8 in | 0.05 lbs | |
| J4710B | 1/4 in. Drive 5/16 in. 6-Point Black Oxide Socket | 31/64 in | 31/64 in | 19/64 in | 9/16 in | 7/8 in | 0.03 lbs | |
| J4708B | 1/4 in. Drive 1/4 in. 6-Point Black Oxide Socket | 11/32 in | 31/64 in | 7/32 in | 11/32 in | 7/8 in | 0.02 lbs | |
| J4704B | 1/4 in. Drive 1/8 in. 6-Point Black Oxide Socket | 1/4 in | 5/32 in | 15/32 in | 11/32 in | 7/8 in | 0.02 lbs | |
| J4709B | 1/4 in. Drive 9/32 in. 6-Point Black Oxide Socket | 27/64 in | 31/64 in | 1/4 in | 11/32 in | 7/8 in | 0.02 lbs | |
| J4720AB | 1/4 in. Drive 5/8 in. 6-Point Black Oxide Socket | 5/8 in | 3/8 in | 7/8 in | 9/16 in | 7/8 in | 0.09 lbs | |
| J4716B | 1/4 in. Drive 1/2 in. 6-Point Black Oxide Socket | 11/16 in | 11/16 in | 23/64 in | 17/32 in | 7/8 in | 0.06 lbs | |
| J4711B | 1/4 in. Drive 11/32 in. 6-Point Black Oxide Socket | 33/64 in | 33/64 in | 11/32 in | 17/32 in | 7/8 in | 0.03 lbs | |
| J4718B | 1/4 in. Drive 9/16 in. 6-Point Black Oxide Socket | 47/64 in | 47/64 in | 23/64 in | 9/16 in | 7/8 in | 0.07 lbs | |
| J4712B | 1/4 in. Drive 3/8 in. 6-Point Black Oxide Socket | 9/16 in | 11/32 in | 17/32 in | 17/32 in | 7/8 in | 0.03 lbs | |
| J4705B | 1/4 in. Drive 5/32 in. 6-Point Black Oxide Socket | 17/64 in | 31/64 in | 11/64 in | 11/32 in | 7/8 in | 0.03 lbs |
