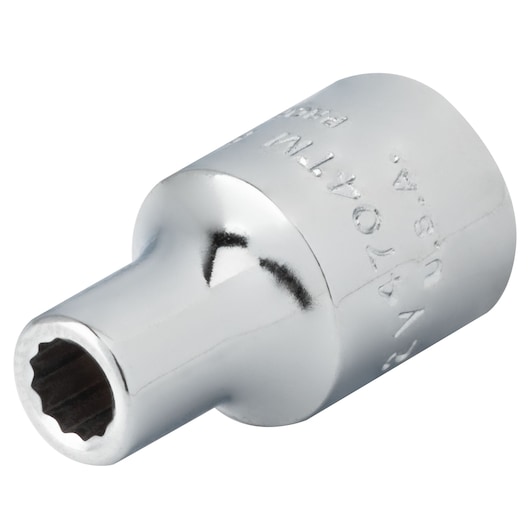

1/4 in. Drive 4mm 12-Point Metric Socket
J4704TM
1/4 in. Drive 4mm 12-Point Metric Socket
- Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
Additional Features
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners
| SKU | Product Name | Nut End Outside Diameter [in] | Drive End Outside Diameter [in] | Nut Depth [in] | Bolt Clearance Depth [in] | Overall Length [in] | Product Weight [lbs] | Purchase |
|---|---|---|---|---|---|---|---|---|
| J47045TM | 1/4 in. Drive 4/5mm 12-Point Metric Socket | 5/16 | 15/32 | 11/64 | 13/32 | 7/8 | 0.01 | |
| J4704TM | 1/4 in. Drive 4mm 12-Point Metric Socket | 17/64 | 15/32 | 11/64 | 13/32 | 7/8 | 0.01 | |
| J47055TM | 1/4 in. Drive 5.5mm 12-Point Metric Socket | 21/64 | 15/32 | 11/64 | 13/32 | 7/8 | 0.02 | |
| J4705TM | 1/4 in. Drive 5mm 12-Point Metric Socket | 5/16 | 15/32 | 11/64 | 13/32 | 7/8 | 0.02 | |
| J4706TM | 1/4 in. Drive 6mm 12-Point Metric Socket | 3/8 | 15/32 | 7/32 | 13/32 | 7/8 | 0.02 | |
| J4707TM | 1/4 in. Drive 7mm 12-Point Metric Socket | 27/64 | 15/32 | 1/4 | 15/32 | 7/8 | 0.02 | |
| J4708TM | 1/4 in. Drive 8mm 12-Point Metric Socket | 15/32 | 15/32 | 19/64 | 35/64 | 7/8 | 0.04 | |
| J4709TM | 1/4 in. Drive 9mm 12-Point Metric Socket | 33/64 | 33/64 | 23/64 | 35/64 | 7/8 | 0.03 | |
| J4710TM | 1/4 in. Drive 10mm 12-Point Metric Socket | 37/64 | 37/64 | 23/64 | 35/64 | 7/8 | 0.04 | |
| J4711TM | 1/4 in. Drive 11mm 12-Point Metric Socket | 5/8 | 5/8 | 23/64 | 35/64 | 7/8 | 0.05 | |
| J4712TM | 1/4 in. Drive 12mm 12-Point Metric Socket | 21/32 | 21/32 | 23/64 | 35/64 | 7/8 | 0.05 | |
| J4713TM | 1/4 in. Drive 13mm 12-Point Metric Socket | 11/16 | 11/16 | 23/64 | 35/64 | 7/8 | 0.05 | |
| J4714TM | 1/4 in. Drive 14mm 12-Point Metric Socket | 3/4 | 3/4 | 23/64 | 9/16 | 7/8 | 0.06 |
