J4805AM
1/4 in. Drive 5mm 6-Point Universal Socket
PROTO J4805AM chrome universal joint socket, 5mm, shown at angle on white background.

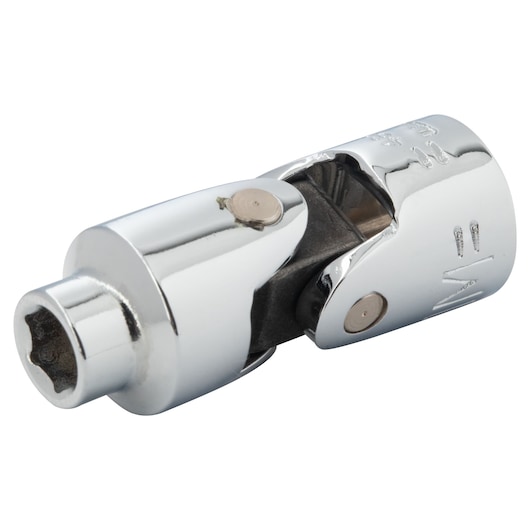

PROTO J4805AM shiny chrome universal socket adapter on white background, close-up angle

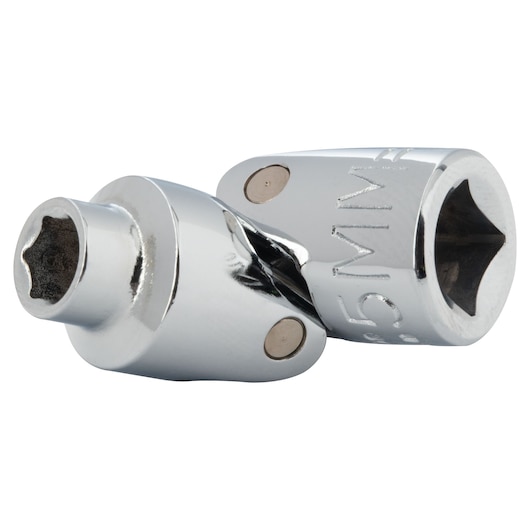

PROTO J4805AM chrome universal joint socket on white background, photography showing angled view.

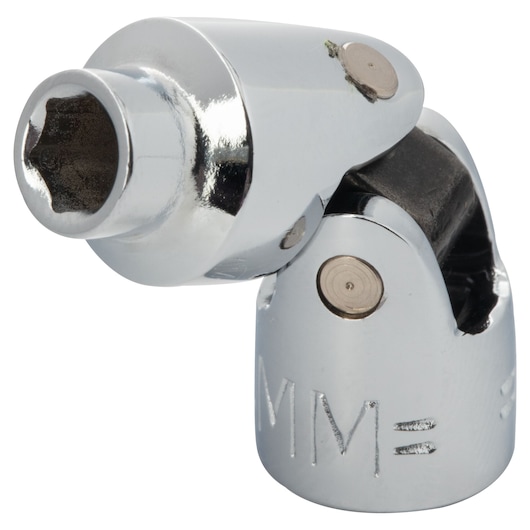

PROTO J4805AM chrome universal joint socket adapter close-up on white background.
J4805AM

1/4 in. Drive 5mm 6-Point Universal Socket

  • Proto® 6 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials
  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
  • The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
View more features

Additional Features

  • The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners
SKU Product Name Nut End Outside Diameter [in] Drive End Outside Diameter [in] Nut Depth [in] Bolt Clearance Depth [in] Overall Length [in] Product Weight [lbs] Purchase
J48055AM 1/4 in. Drive 5.5mm 6-Point Universal Socket 21/64 31/64 9/32 11/32 1-1/4 0
J4805AM 1/4 in. Drive 5mm 6-Point Universal Socket 5/16 31/64 9/32 11/32 1-1/4 0.03
J4806AM 1/4 in. Drive 6mm 6-Point Universal Socket 11/32 31/64 9/32 11/32 1-1/4 0.04
J4807AM 1/4 in. Drive 7mm 6-Point Universal Socket 13/32 31/64 9/32 11/32 1-1/4 0.04
J4808AM 1/4 in. Drive 8mm 6-Point Universal Socket 29/64 31/64 9/32 11/32 1-1/4 0.03
J4809AM 1/4 in. Drive 9mm 6-Point Universal Socket 1/2 31/64 9/32 11/32 1-1/4 0.04
J4810AM 1/4 in. Drive 10mm 6-Point Universal Socket 35/64 31/64 9/32 11/32 1-1/4 0.04
J4811AM 1/4 in. Drive 11mm 6-Point Universal Socket 19/32 31/64 9/32 11/32 1-1/4 0.05
J4812AM 1/4 in. Drive 12mm 6-Point Universal Socket 21/32 31/64 9/32 11/32 1-1/4 0.04
J4813AM 1/4 in. Drive 13mm 6-Point Universal Socket 45/64 31/64 19/64 11/32 1-1/4 0.05
J4814AM 1/4 in. Drive 14mm 6-Point Universal Socket 47/64 31/64 23/64 27/64 1-21/64 0.05
J4815AM 1/4 in. Drive 15mm 6-Point Universal Socket 51/64 31/64 23/64 27/64 1-21/64 0.05
