J5006M-TT

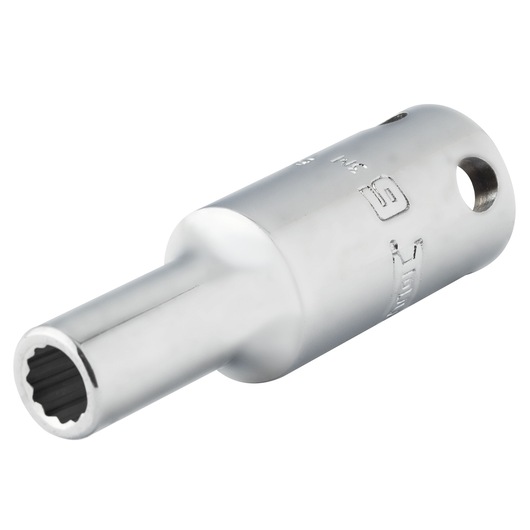

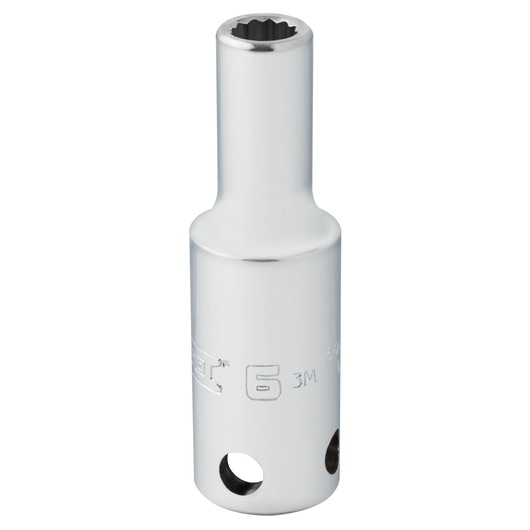

3/8 in. Drive 6mm 12-Point Tethered Deep Socket
3/8 in. Drive 6mm 12-Point Tethered Deep Socket
3/8 in. Drive 6mm 12-Point Tethered Deep Socket
J5006M-TT

3/8 in. Drive 6mm 12-Point Tethered Deep Socket

  • Proto® Tethered Tool Sockets are manufactured with four detent holes so that the pin detent will engage correctly regardless of the direction the socket is placed on the square drive
  • The Positive Control System requires a separate tool to attach or remove the socket, meaning it cannot be removed without specific intent
  • Chrome finish is applied after the holes are bored for better corrosion resistance
View more features

Additional Features

  • Proto® 12 point sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials
  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
  • The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
  • The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners
SKU Product Name Nut End Outside Diameter [Imperial] Drive End Outside Diameter [Imperial] Nut Depth [Imperial] Bolt Clearance Depth [Imperial] Overall Length [Imperial] Product Weight [Imperial] Purchase
J5016M-TT 3/8 in. Drive 16mm 12-Point Tethered Deep Socket 55/64 in 55/64 in 21/32 in 2-7/64 in 2-3/4 in 0.24 lbs
J5008M-TT 3/8 in. Drive 8mm 12-Point Tethered Deep Socket 15/32 in 21/32 in 25/64 in 1-47/64 in 2-1/8 in 0.1 lbs
J5017M-TT 3/8 in. Drive 17mm 12-Point Tethered Deep Socket 15/16 in 15/16 in 21/32 in 2-7/64 in 2-3/4 in 0.27 lbs
J5011M-TT 3/8 in. Drive 11mm 12-Point Tethered Deep Socket 21/32 in 7/16 in 1-11/16 in 1-47/64 in 2-1/8 in 0.13 lbs
J5019M-TT 3/8 in. Drive 19mm 12-Point Tethered Deep Socket 1-1/64 in 1-1/64 in 11/16 in 2-1/16 in 2-3/4 in 0.3 lbs
J5014M-TT 3/8 in. Drive 14mm 12-Point Tethered Deep Socket 25/32 in 25/32 in 19/32 in 1-17/32 in 2-1/8 in 0.15 lbs
J5018M-TT 3/8 in. Drive 18mm 12-Point Tethered Deep Socket 15/16 in 15/16 in 21/32 in 2-7/64 in 2-3/4 in 0.28 lbs
J5006M-TT 3/8 in. Drive 6mm 12-Point Tethered Deep Socket 25/64 in 21/32 in 5/16 in 1-13/16 in 2-1/8 in 0.11 lbs
J5015M-TT 3/8 in. Drive 15mm 12-Point Tethered Deep Socket 55/64 in 55/64 in 21/32 in 2-7/64 in 2-3/4 in 0.15 lbs
J5009M-TT 3/8 in. Drive 9mm 12-Point Tethered Deep Socket 33/64 in 21/32 in 25/64 in 1-47/64 in 2-1/8 in 0.11 lbs
J5007M-TT 3/8 in. Drive 7mm 12-Point Tethered Deep Socket 25/64 in 21/32 in 25/64 in 1-47/64 in 2-1/8 in 0.09 lbs
J5020M-TT 3/8 in. Drive 20mm 12-Point Tethered Deep Socket 1-5/64 in 1-5/64 in 11/16 in 2-1/16 in 2-3/4 in 0.33 lbs
J5023M-TT 3/8 in. Drive 23mm 12-Point Tethered Deep Socket 1-7/32 in 1-11/64 in 1-3/16 in 1-37/64 in 0.54 lbs
J5010M-TT 3/8 in. Drive 10mm 12-Point Tethered Deep Socket 37/64 in 21/32 in 25/64 in 1-47/64 in 2-1/8 in 0.12 lbs
J5012M-TT 3/8 in. Drive 12mm 12-Point Tethered Deep Socket 45/64 in 45/64 in 33/64 in 1-39/64 in 0.13 lbs
J5013M-TT 3/8 in. Drive 13mm 12-Point Tethered Deep Socket 23/32 in 23/32 in 33/64 in 1-39/64 in 2-1/8 in 0.13 lbs
J5022M-TT 3/8 in. Drive 22mm 12-Point Tethered Deep Socket 1-11/64 in 1-11/64 in 11/16 in 2-1/16 in 2-3/4 in 0.45 lbs
J5021M-TT 3/8 in. Drive 21mm 12-Point Tethered Deep Socket 1-5/64 in 1-5/64 in 11/16 in 2-1/16 in 2-3/4 in 0.34 lbs
