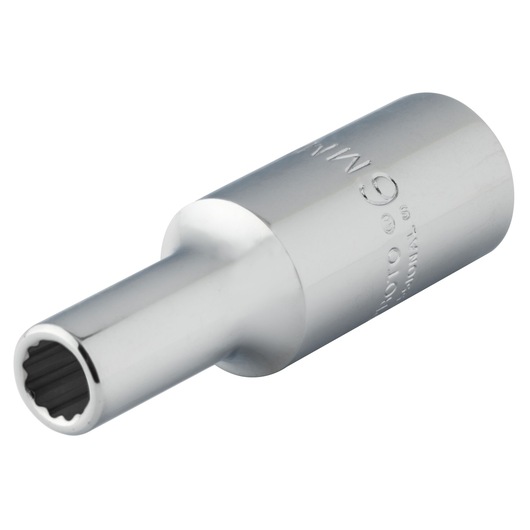

3/8 in. Drive 6mm 12-Point Deep Socket
J5006M
3/8 in. Drive 6mm 12-Point Deep Socket
- Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
Additional Features
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners
| SKU | Product Name | Nut End Outside Diameter [in] | Drive End Outside Diameter [in] | Nut Depth [in] | Bolt Clearance Depth [in] | Overall Length [in] | Product Weight [lbs] | Purchase |
|---|---|---|---|---|---|---|---|---|
| J5006M | 3/8 in. Drive 6mm 12-Point Deep Socket | 25/64 | 21/32 | 5/16 | 1-11/16 | 2-1/8 | 0.1 | |
| J5007M | 3/8 in. Drive 7mm 12-Point Deep Socket | 27/64 | 21/32 | 5/16 | 1-11/16 | 2-1/8 | 0.09 | |
| J5008M | 3/8 in. Drive 8mm 12-Point Deep Socket | 15/32 | 21/32 | 5/16 | 1-15/16 | 2-1/8 | 0.1 | |
| J5009M | 3/8 in. Drive 9mm 12-Point Deep Socket | 33/64 | 21/32 | 25/64 | 1-11/16 | 2-1/8 | 0.1 | |
| J5010M | 3/8 in. Drive 10mm 12-Point Deep Socket | 37/64 | 21/32 | 25/64 | 1-11/16 | 2-1/8 | 0.11 | |
| J5011M | 3/8 in. Drive 11mm 12-Point Deep Socket | 21/32 | 21/32 | 7/16 | 1-11/16 | 2-1/8 | 0.12 | |
| J5012M | 3/8 in. Drive 12mm 12-Point Deep Socket | 45/64 | 45/64 | 33/64 | 1-1/2 | 2-1/8 | 0.14 | |
| J5013M | 3/8 in. Drive 13mm 12-Point Deep Socket | 23/32 | 23/32 | 33/64 | 1-1/2 | 2-1/8 | 0.15 | |
| J5014M | 3/8 in. Drive 14mm 12-Point Deep Socket | 25/32 | 25/32 | 19/32 | 1-1/2 | 2-1/8 | 0.16 | |
| J5015M | 3/8 in. Drive 15mm 12-Point Deep Socket | 55/64 | 55/64 | 21/32 | 2-5/16 | 2-3/4 | 0.24 | |
| J5016M | 3/8 in. Drive 16mm 12-Point Deep Socket | 55/64 | 55/64 | 21/32 | 2-5/16 | 2-3/4 | 0.24 | |
| J5017M | 3/8 in. Drive 17mm 12-Point Deep Socket | 15/16 | 15/16 | 21/32 | 2-5/16 | 2-3/4 | 0.28 | |
| J5018M | 3/8 in. Drive 18mm 12-Point Deep Socket | 15/16 | 15/16 | 21/32 | 2-5/16 | 2-3/4 | 0.28 | |
| J5019M | 3/8 in. Drive 19mm 12-Point Deep Socket | 1-1/64 | 1-1/64 | 11/16 | 2-5/16 | 2-3/4 | 0.33 | |
| J5020M | 3/8 in. Drive 20mm 12-Point Deep Socket | 1-5/64 | 1-5/64 | 11/16 | 2-5/16 | 2-3/4 | 0.35 | |
| J5021M | 3/8 in. Drive 21mm 12-Point Deep Socket | 1-5/64 | 1-5/64 | 11/16 | 2-5/16 | 2-3/4 | 0.35 | |
| J5022M | 3/8 in. Drive 22mm 12-Point Deep Socket | 1-11/64 | 1-11/64 | 11/16 | 2-5/16 | 2-3/4 | 0.46 | |
| J5023M | 3/8 in. Drive 23mm 12-Point Deep Socket | 1-15/64 | 1-15/64 | 1-3/16 | 2-5/16 | 2-3/4 | 0.55 |
