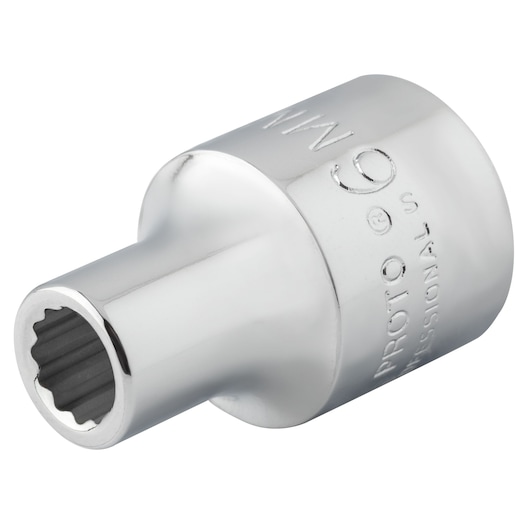

3/8 in. Drive 6mm 12-Point Tethered Socket
J5206M
3/8 in. Drive 6mm 12-Point Tethered Socket
- Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
Additional Features
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners
| SKU | Product Name | Nut End Outside Diameter [in] | Drive End Outside Diameter [in] | Nut Depth [in] | Bolt Clearance Depth [in] | Overall Length [in] | Product Weight [lbs] | Purchase |
|---|---|---|---|---|---|---|---|---|
| J5206M | 3/8 in. Drive 6mm 12-Point Tethered Socket | 25/64 | 43/64 | 1/4 | 45/64 | 1-3/32 | 0.05 | |
| J5207M | 3/8 in. Drive 7mm 12-Point Tethered Socket | 27/64 | 43/64 | 1/4 | 45/64 | 1-3/32 | 0.05 | |
| J5208M | 3/8 in. Drive 8mm 12-Point Tethered Socket | 15/32 | 43/64 | 1/4 | 45/64 | 1-3/32 | 0.06 | |
| J5210M | 3/8 in. Drive 10mm 12-Point Tethered Socket | 19/32 | 43/64 | 5/16 | 45/64 | 1-3/32 | 0.06 | |
| J5211M | 3/8 in. Drive 11mm 12-Point Tethered Socket | 41/64 | 43/64 | 21/64 | 45/64 | 1-3/32 | 0.07 | |
| J5212M | 3/8 in. Drive 12mm 12-Point Tethered Socket | 45/64 | 45/64 | 9/32 | 1/2 | 1-1/8 | 0.05 | |
| J5213M | 3/8 in. Drive 13mm 12-Point Tethered Socket | 47/64 | 47/64 | 9/32 | 1/2 | 1-1/8 | 0.07 | |
| J5214M | 3/8 in. Drive 14mm 12-Point Tethered Socket | 25/32 | 25/32 | 15/32 | 7/16 | 1-1/8 | 0.08 | |
| J5215M | 3/8 in. Drive 15mm 12-Point Tethered Socket | 27/32 | 27/32 | 17/32 | 7/16 | 1-1/8 | 0.1 | |
| J5216M | 3/8 in. Drive 16mm 12-Point Tethered Socket | 55/64 | 55/64 | 17/32 | 7/16 | 1-1/8 | 0.1 | |
| J5217M | 3/8 in. Drive 17mm 12-Point Tethered Socket | 15/16 | 15/16 | 17/32 | 7/16 | 1-1/8 | 0.12 | |
| J5218M | 3/8 in. Drive 18mm 12-Point Tethered Socket | 61/64 | 61/64 | 17/32 | 1/2 | 1-3/16 | 0.12 | |
| J5219M | 3/8 in. Drive 19mm 12-Point Tethered Socket | 1 | 1 | 17/32 | 1/2 | 1-3/16 | 0.14 | |
| J5220M | 3/8 in. Drive 20mm 12-Point Tethered Socket | 1-3/32 | 1-3/32 | 5/8 | 1/2 | 1-3/16 | 0.17 | |
| J5221M | 3/8 in. Drive 21mm 12-Point Tethered Socket | 1-3/32 | 1-3/32 | 9/16 | 41/64 | 1-9/32 | 0.18 | |
| J5222M | 3/8 in. Drive 22mm 12-Point Tethered Socket | 1-11/64 | 1-11/64 | 43/64 | 5/8 | 1-5/16 | 0.22 | |
| J5223M | 3/8 in. Drive 23mm 12-Point Tethered Socket | 1-3/16 | 1-3/16 | 47/64 | 5/8 | 1-5/16 | 0.21 | |
| J5224M | 3/8 in. Drive 24mm 12-Point Tethered Socket | 1-1/4 | 1-1/4 | 49/64 | 37/64 | 1-5/16 | 0.23 | |
| J5225M | 3/8 in. Drive 25mm 12-Point Tethered Socket | 1-21/64 | 1-21/64 | 49/64 | 5/8 | 1-3/8 | 0.29 | |
| J5226M | 3/8 in. Drive 26mm 12-Point Tethered Socket | 1-21/64 | 1-21/64 | 49/64 | 59/64 | 1-3/8 | 0.26 |
