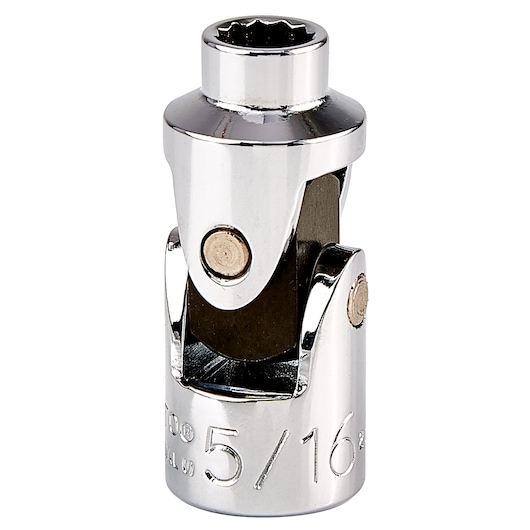

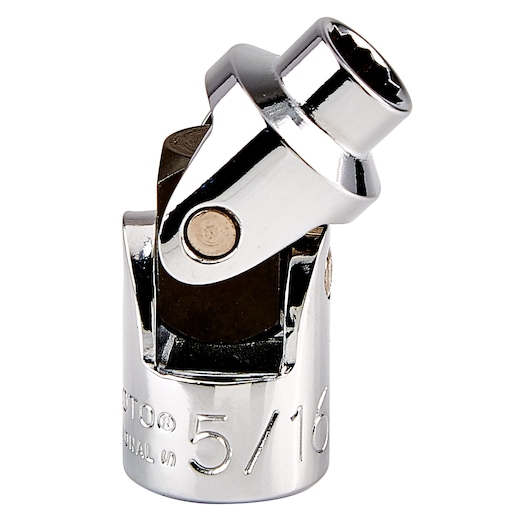

3/8 in. Drive 5/16 in. 12-Point Universal Socket
J5272A
3/8 in. Drive 5/16 in. 12-Point Universal Socket
- Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
Additional Features
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners
| SKU | Product Name | Nut End Outside Diameter [Imperial] | Drive End Outside Diameter [Imperial] | Nut Depth [Imperial] | Bolt Clearance Depth [Imperial] | Overall Length [Imperial] | Product Weight [Imperial] | Purchase |
|---|---|---|---|---|---|---|---|---|
| J5280A | 3/8 in. Drive 13/16 in. 12-Point Universal Socket | 1-3/32 in | 25/32 in | 13/32 in | 9/16 in | 1-7/8 in | 0.27 lbs | |
| J5274A | 3/8 in. Drive 7/16 in. 12-Point Universal Socket | 41/64 in | 3/4 in | 5/16 in | 5/16 in | 1-25/32 in | 0.12 lbs | |
| J5279A | 3/8 in. Drive 3/4 in. 12-Point Universal Socket | 1 in | 3/4 in | 13/32 in | 15/32 in | 2 in | 0.16 lbs | |
| J5276A | 3/8 in. Drive 9/16 in. 12-Point Universal Socket | 25/32 in | 3/4 in | 3/8 in | 3/8 in | 1-7/8 in | 0.13 lbs | |
| J5282A | 3/8 in. Drive 15/16 in. 12-Point Universal Socket | 1-1/4 in | 25/32 in | 17/32 in | 5/8 in | 1-61/64 in | 0.35 lbs | |
| J5273A | 3/8 in. Drive 3/8 in. 12-Point Universal Socket | 35/64 in | 3/4 in | 9/32 in | 9/32 in | 1-3/4 in | 0.12 lbs | |
| J5275A | 3/8 in. Drive 1/2 in. 12-Point Universal Socket | 23/32 in | 3/4 in | 5/16 in | 5/16 in | 1-25/32 in | 0.12 lbs | |
| J5281A | 3/8 in. Drive 7/8 in. 12-Point Universal Socket | 1-3/16 in | 25/32 in | 17/32 in | 5/8 in | 1-61/64 in | 0.31 lbs | |
| J5277A | 3/8 in. Drive 5/8 in. 12-Point Universal Socket | 7/8 in | 3/4 in | 3/8 in | 3/8 in | 1-7/8 in | 0.14 lbs | |
| J5278A | 3/8 in. Drive 11/16 in. 12-Point Universal Socket | 31/32 in | 3/4 in | 13/32 in | 15/32 in | 1-31/32 in | 0.15 lbs | |
| J5272A | 3/8 in. Drive 5/16 in. 12-Point Universal Socket | 15/32 in | 3/4 in | 9/32 in | 9/32 in | 1-3/4 in | 0.12 lbs | |
| J5283A | 3/8 in. Drive 1 in. 12-Point Universal Socket | 1-11/32 in | 25/32 in | 9/16 in | 45/64 in | 2 | 0.39 lbs |
