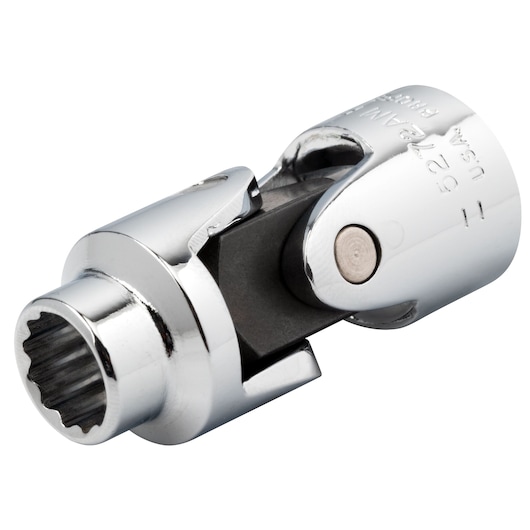

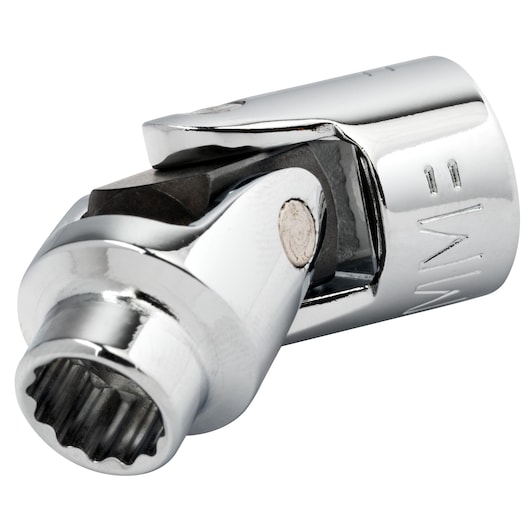

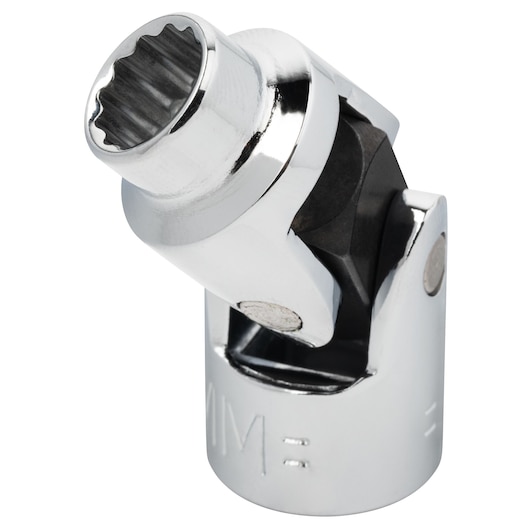

3/8 in. Drive 9mm 12-Point Universal Socket
J5272AM
3/8 in. Drive 9mm 12-Point Universal Socket
- Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
Additional Features
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners
| SKU | Product Name | Nut End Outside Diameter [Imperial] | Drive End Outside Diameter [Imperial] | Nut Depth [Imperial] | Bolt Clearance Depth [Imperial] | Overall Length [Imperial] | Product Weight [Imperial] | Purchase |
|---|---|---|---|---|---|---|---|---|
| J5275AM | 3/8 in. Drive 12mm 12-Point Universal Socket | 21/32 in | 23/32 in | 11/32 in | 1/2 in | 1-3/4 in | 0.1 lbs | |
| J5281AM | 3/8 in. Drive 18mm 12-Point Universal Socket | 63/64 in | 23/32 in | 7/16 in | 33/64 in | 1-57/64 in | 0.16 lbs | |
| J5276AM | 3/8 in. Drive 13mm 12-Point Universal Socket | 23/32 in | 23/32 in | 11/32 in | 1/2 in | 1-3/4 in | 0.11 lbs | |
| J5282AM | 3/8 in. Drive 19mm 12-Point Universal Socket | 63/64 in | 23/32 in | 15/32 in | 17/32 in | 1-59/64 in | 0.15 lbs | |
| J5278AM | 3/8 in. Drive 15mm 12-Point Universal Socket | 13/16 in | 23/32 in | 3/8 in | 41/64 in | 1-7/8 in | 0.12 lbs | |
| J5277AM | 3/8 in. Drive 14mm 12-Point Universal Socket | 25/32 in | 23/32 in | 3/8 in | 33/64 in | 1-7/8 in | 0.13 lbs | |
| J5280AM | 3/8 in. Drive 17mm 12-Point Universal Socket | 15/16 in | 23/32 in | 7/16 in | 33/64 in | 1-57/64 in | 0.15 lbs | |
| J5273AM | 3/8 in. Drive 10mm 12-Point Universal Socket | 35/64 in | 23/32 in | 11/32 in | 25/64 in | 1-3/4 in | 0.1 lbs | |
| J5279AM | 3/8 in. Drive 16mm 12-Point Universal Socket | 55/64 in | 23/32 in | 13/32 in | 33/64 in | 1-57/64 in | 0.12 lbs | |
| J5274AM | 3/8 in. Drive 11mm 12-Point Universal Socket | 19/32 in | 23/32 in | 11/32 in | 25/64 in | 1-3/4 in | 0.12 lbs | |
| J5272AM | 3/8 in. Drive 9mm 12-Point Universal Socket | 33/64 in | 23/32 in | 5/16 in | 25/64 in | 1-3/4 in | 0.1 lbs |
