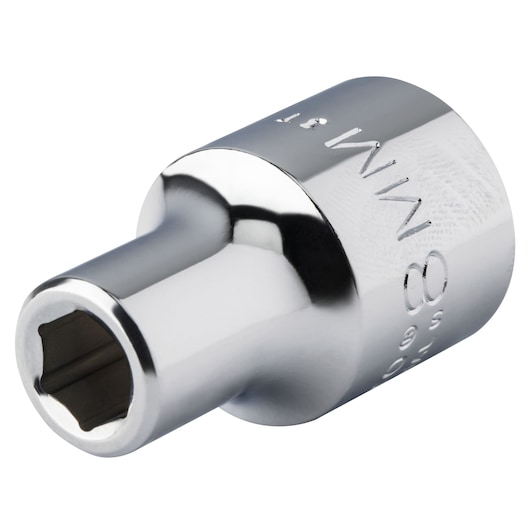

1/2 in. Drive 8mm 6-Point Socket
J5408MH
1/2 in. Drive 8mm 6-Point Socket
- Proto® 6 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
Additional Features
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners
| SKU | Product Name | Nut End Outside Diameter [in] | Drive End Outside Diameter [in] | Nut Depth [in] | Bolt Clearance Depth [in] | Overall Length [in] | Product Weight [lbs] | Purchase |
|---|---|---|---|---|---|---|---|---|
| J5408MH | 1/2 in. Drive 8mm 6-Point Socket | 35/64 | 55/64 | 23/64 | 25/32 | 1-19/64 | 0.11 | |
| J5409MH | 1/2 in. Drive 9mm 6-Point Socket | 19/32 | 5/64 | 23/64 | 25/32 | 1-31/64 | 0.11 | |
| J5410MH | 1/2 in. Drive 10mm 6-Point Socket | 39/64 | 55/64 | 23/64 | 55/64 | 1-31/64 | 0.11 | |
| J5411MH | 1/2 in. Drive 11mm 6-Point Socket | 45/64 | 55/64 | 23/64 | 55/64 | 1-31/64 | 0.11 | |
| J5412MH | 1/2 in. Drive 12mm 6-Point Socket | 47/64 | 55/64 | 23/64 | 55/64 | 1-31/64 | 0.11 | |
| J5413MH | 1/2 in. Drive 13mm 6-Point Socket | 3/4 | 55/64 | 23/64 | 55/64 | 1-31/64 | 0.12 | |
| J5414MH | 1/2 in. Drive 14mm 6-Point Socket | 13/16 | 55/64 | 23/64 | 7/8 | 1-1/2 | 0.13 | |
| J5415MH | 1/2 in. Drive 15mm 6-Point Socket | 55/64 | 55/64 | 37/64 | 7/8 | 1-1/2 | 0.13 | |
| J5416MH | 1/2 in. Drive 16mm 6-Point Socket | 7/8 | 7/8 | 37/64 | 7/8 | 1-1/2 | 0.13 | |
| J5417MH | 1/2 in. Drive 17mm 6-Point Socket | 61/64 | 61/64 | 37/64 | 7/8 | 1-1/2 | 0.14 | |
| J5418MH | 1/2 in. Drive 18mm 6-Point Socket | 61/64 | 61/64 | 37/64 | 7/8 | 1-1/2 | 0.17 | |
| J5419MH | 1/2 in. Drive 19mm 6-Point Socket | 1-1/32 | 1-1/32 | 11/16 | 27/32 | 1-1/2 | 0.19 | |
| J5420MH | 1/2 in. Drive 20mm 6-Point Socket | 1-3/32 | 1-3/32 | 11/16 | 27/32 | 1-1/2 | 0.22 | |
| J5421MH | 1/2 in. Drive 21mm 6-Point Socket | 1-3/32 | 1-3/32 | 11/16 | 27/32 | 1-1/2 | 0.24 | |
| J5422MH | 1/2 in. Drive 22mm 6-Point Socket | 1-11/64 | 1-11/64 | 11/16 | 27/32 | 1-17/32 | 0.26 | |
| J5423MH | 1/2 in. Drive 23mm 6-Point Socket | 1-13/64 | 1-13/64 | 25/32 | 59/64 | 1-17/32 | 0.27 | |
| J5424MH | 1/2 in. Drive 24mm 6-Point Socket | 1-1/4 | 1-1/4 | 53/64 | 59/64 | 1-17/32 | 0.28 | |
| J5425MH | 1/2 in. Drive 25mm 6-Point Socket | 1-9/32 | 1-9/32 | 53/64 | 59/64 | 1-17/32 | 0.3 | |
| J5426MH | 1/2 in. Drive 26mm 6-Point Socket | 1-21/64 | 1-21/64 | 55/64 | 63/64 | 1-39/64 | 0.33 | |
| J5427MH | 1/2 in. Drive 27mm 6-Point Socket | 1-13/32 | 1-13/32 | 15/16 | 1-3/64 | 1-43/64 | 0.39 | |
| J5428MH | 1/2 in. Drive 28mm 6-Point Socket | 1-31/64 | 1-31/64 | 63/64 | 1-5/32 | 1-25/32 | 0.48 | |
| J5429MH | 1/2 in. Drive 29mm 6-Point Socket | 1-31/64 | 1-31/64 | 63/64 | 1-5/32 | 1-25/32 | 0.62 | |
| J5430MH | 1/2 in. Drive 30mm 6-Point Socket | 1-9/16 | 1-17/32 | 63/64 | 1-5/32 | 1-25/32 | 0.63 | |
| J5431MH | 1/2 in. Drive 31mm 6-Point Socket | 1-39/64 | 1-39/64 | 1-1/16 | 1-5/32 | 1-25/32 | 0.63 | |
| J5432MH | 1/2 in. Drive 32mm 6-Point Socket | 1-39/64 | 1-39/64 | 1-1/8 | 1-7/32 | 1-27/32 | 0.63 | |
| J5434MH | 1/2 in. Drive 34mm 6-Point Socket | 1-49/64 | 1-49/64 | 1 | 1-35/64 | 1-27/32 | 0.63 | |
| J5436MH | 1/2 in. Drive 36mm 6-Point Socket | 1-31/32 | 1-31/32 | 1-3/8 | 1-39/64 | 2-15/64 | 1.04 |
