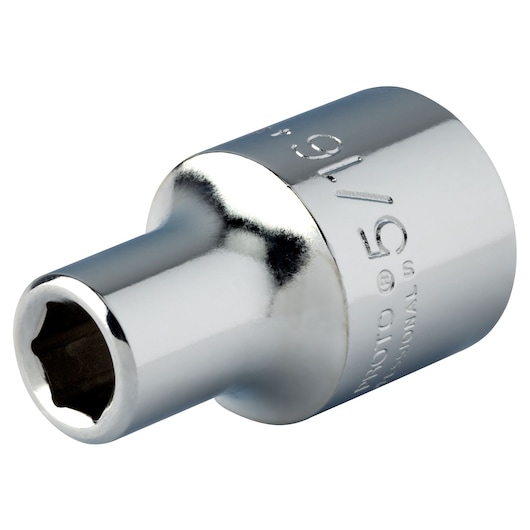

1/2 in. Drive 5/16 in. 6-Point Socket
J5410H
1/2 in. Drive 5/16 in. 6-Point Socket
- Proto® 6 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
Additional Features
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners
| SKU | Product Name | Nut End Outside Diameter [in] | Drive End Outside Diameter [in] | Nut Depth [in] | Bolt Clearance Depth [in] | Overall Length [in] | Product Weight [lbs] | Purchase |
|---|---|---|---|---|---|---|---|---|
| J5410H | 1/2 in. Drive 5/16 in. 6-Point Socket | 17/32 | 55/64 | 23/64 | 23/32 | 1-34/64 | 0.11 | |
| J5412H | 1/2 in. Drive 3/8 in. 6-Point Socket | 9/16 | 55/64 | 23/64 | 7/8 | 1-31/64 | 0.11 | |
| J5414H | 1/2 in. Drive 7/16 in. 6-Point Socket | 43/64 | 55/64 | 23/64 | 7/8 | 1-31/64 | 0.11 | |
| J5416H | 1/2 in. Drive 1/2 in. 6-Point Socket | 47/64 | 55/64 | 23/64 | 7/8 | 1-31/64 | 0.11 | |
| J5418H | 1/2 in. Drive 9/16 in. 6-Point Socket | 13/16 | 55/64 | 23/64 | 51/64 | 1-1/2 | 0.13 | |
| J5420H | 1/2 in. Drive 5/8 in. 6-Point Socket | 7/8 | 7/8 | 9/16 | 21/32 | 1-1/2 | 0.14 | |
| J5421H | 1/2 in. Drive 21/32 in. 6-Point Socket | 61/64 | 61/64 | 9/16 | 21/32 | 1-1/2 | 0.15 | |
| J5422H | 1/2 in. Drive 11/16 in. 6-Point Socket | 61/64 | 61/64 | 9/16 | 21/32 | 1-1/2 | 0.15 | |
| J5424H | 1/2 in. Drive 3/4 in. 6-Point Socket | 1-1/32 | 1-1/64 | 11/16 | 21/32 | 1-1/2 | 0.15 | |
| J5425H | 1/2 in. Drive 25/32 in. 6-Point Socket | 1-1/16 | 1-5/64 | 11/16 | 21/32 | 1-1/2 | 0.2 | |
| J5426H | 1/2 in. Drive 13/16 in. 6-Point Socket | 1-3/32 | 1-5/64 | 11/16 | 21/32 | 1-1/2 | 0.23 | |
| J5428H | 1/2 in. Drive 7/8 in. 6-Point Socket | 1-11/64 | 1-3/16 | 11/16 | 45/64 | 1-9/16 | 0.26 | |
| J5430H | 1/2 in. Drive 15/16 in. 6-Point Socket | 1-1/4 | 1-1/4 | 13/16 | 45/64 | 1-9/16 | 0.33 | |
| J5432H | 1/2 in. Drive 1 in. 6-Point Socket | 1-21/64 | 1-5/16 | 27/32 | 45/64 | 1-9/16 | 0.38 | |
| J5434H | 1/2 in. Drive 1-1/16 in. 6-Point Socket | 1-13/32 | 1-25/64 | 13/16 | 25/32 | 1-5/8 | 0.42 | |
| J5436H | 1/2 in. Drive 1-1/8 in. 6-Point Socket | 1-31/64 | 1-31/64 | 15/16 | 29/32 | 1-3/4 | 0.47 | |
| J5438H | 1/2 in. Drive 1-3/16 in. 6-Point Socket | 1-9/16 | 1-17/32 | 59/64 | 29/32 | 1-3/4 | 0.59 | |
| J5440H | 1/2 in. Drive 1-1/14 in. 6-Point Socket | 1-39/64 | 1-37/64 | 1 | 7/8 | 1-3/4 | 0.66 | |
| J5442H | 1/2 in. Drive 1-5/16 in. 6-Point Socket | 1-21/32 | 1-41/64 | 27/32 | 1-19/64 | 1-55/64 | 0.69 | |
| J5444H | 1/2 in. Drive 1-3/8 in. 6-Point Socket | 1-25/32 | 1-5/8 | 25/32 | 1-19/64 | 2 | 0.79 | |
| J5446H | 1/2 in. Drive 1-7/16 in. 6-Point Socket | 1-59/64 | 1-5/8 | 27/32 | 1-19/64 | 2-1/8 | 0.98 | |
| J5448H | 1/2 in. Drive 1-1/2 in. 6-Point Socket | 1-63/64 | 1-5/8 | 27/32 | 1-19/64 | 2-1/4 | 1.12 | |
| J5450H | 1/2 in. Drive 1-9/16 in. 6-Point Socket | 2-1/32 | 1-5/8 | 1 | 1-9/32 | 2-1/4 | 1.12 |
