J5410MN
1/2 in. Drive 10mm 12-Point Intermediate Socket
PROTO J5410MN chrome 10mm socket photographed from front on white background.

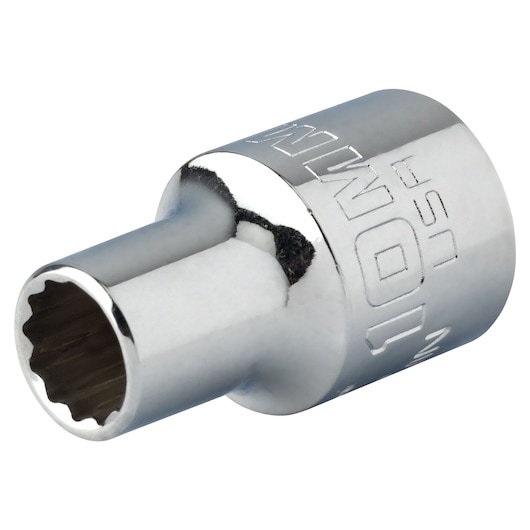

PROTO J5410MN chrome finish socket, photography, angled view on white background
J5410MN

1/2 in. Drive 10mm 12-Point Intermediate Socket

  • Full polish sockets meet and exceed stringent aerospace specification AS4984A which requires tools to have a thicker nickel-chrome coating for greater corrosion-resistance and durability
  • 12-Point sockets are ideal for use on stubborn or damaged fasteners
  • Intermediate lengths give additional reach without limiting accessibility in tight spaces
View more features

Additional Features

  • Features TorquePlus™ design
SKU Product Name Nut End Outside Diameter [in] Drive End Outside Diameter [in] Nut Depth [in] Bolt Clearance Depth [in] Overall Length [in] Product Weight [lbs] Purchase
J5410MN 1/2 in. Drive 10mm 12-Point Intermediate Socket 9/16 55/64 3/8 11/16 1-17/32 0.09
J5411MN 1/2 in. Drive 11mm 12-Point Intermediate Socket 43/64 55/64 7/16 11/16 1-17/32 0.11
J5412MN 1/2 in. Drive 12mm 12-Point Intermediate Socket 43/64 55/64 7/16 11/16 1-17/32 0.11
J5413MN 1/2 in. Drive 13mm 12-Point Intermediate Socket 13/16 55/64 5/8 11/16 1-5/8 0.12
J5414MN 1/2 in. Drive 14mm 12-Point Intermediate Socket 13/16 55/64 5/8 11/16 1-5/8 0.12
J5415MN 1/2 in. Drive 15mm 12-Point Intermediate Socket 13/16 55/64 5/8 11/16 1-5/8 0.12
J5416MN 1/2 in. Drive 16mm 12-Point Intermediate Socket 55/64 55/64 5/8 25/32 1-45/64 0.12
J5417MN 1/2 in. Drive 17mm 12-Point Intermediate Socket 61/64 61/64 13/16 27/32 1-47/64 0.13
J5418MN 1/2 in. Drive 18mm 12-Point Intermediate Socket 61/64 61/64 13/16 27/32 1-47/64 0.13
J5419MN 1/2 in. Drive 19mm 12-Point Intermediate Socket 1-1/64 1-1/64 15/16 1 1-3/4 0.14
J5420MN 1/2 in. Drive 20mm 12-Point Intermediate Socket 1-3/32 1-3/32 31/32 1-1/32 1-3/4 0.21
J5421MN 1/2 in. Drive 21mm 12-Point Intermediate Socket 1-3/32 1-3/32 11/16 27/32 1-13/32 0.21
J5422MN 1/2 in. Drive 22mm 12-Point Intermediate Socket 1-11/64 1-11/64 11/16 57/64 1-35/64 0.26
J5423MN 1/2 in. Drive 23mm 12-Point Intermediate Socket 1-3/16 1-3/16 1 1-9/64 1-13/16 0.26
J5424MN 1/2 in. Drive 24mm 12-Point Intermediate Socket 1-1/4 1-1/4 1 1-3/16 1-7/8 0.27
J5430MN 1/2 in. Drive 30mm 12-Point Intermediate Socket 1-1/2 1-1/2 1-1/8 1-19/64 2 0.5
