J5524

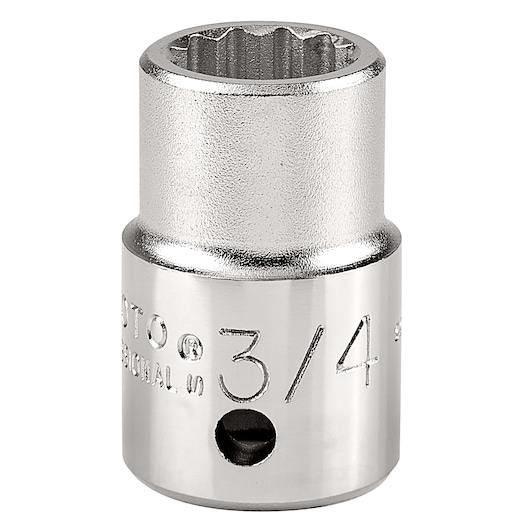

3/4 in. Drive 3/4 in. 12-Point Socket
3/4 in. Drive 3/4 in. 12-Point Socket
J5524

3/4 in. Drive 3/4 in. 12-Point Socket

  • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials
  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
  • The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
View more features

Additional Features

  • The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners
  • Ball detent design
  • Made of heat-treated alloy steel
  • Side locking hole
SKU Product Name Nut End Outside Diameter [Imperial] Drive End Outside Diameter [Imperial] Nut Depth [Imperial] Bolt Clearance Depth [Imperial] Overall Length [Imperial] Product Weight [Imperial] Purchase
J5568 3/4 in. Drive 2-1/8 in. 12-Point Socket 2-61/64 in 2-3/32 in 1-13/16 in 1-13/16 in 3-9/32 in 1.64 lbs
J5534 3/4 in. Drive 1-1/16 in. 12-Point Socket 1-37/64 in 1-37/64 in 3/4 in 1-1/16 in 2 in 0.61 lbs
J5550 3/4 in. Drive 1-9/16 in. 12-Point Socket 2-3/16 in 1-23/32 in 1-3/64 in 1-15/16 in 2-5/8 in 0.97 lbs
J5554 3/4 in. Drive 1-11/16 in. 12-Point Socket 2-3/8 in 1-3/4 in 1-5/32 in 1-15/32 in 2-3/4 in 1.14 lbs
J5566 3/4 in. Drive 2-1/16 in. 12-Point Socket 2-49/64 in 2-1/32 in 1-3/4 in 1-3/4 in 3-5/32 in 1.6 lbs
J5572 3/4 in. Drive 2-1/4 in. 12-Point Socket 3-17/64 in 2-3/32 in 1-61/64 in 2-3/16 in 3-13/32 in 1.91 lbs
J5546 3/4 in. Drive 1-7/16 in. 12-Point Socket 2-3/64 in 1-5/8 in 61/64 in 1-1/4 in 2-13/32 in 1.07 lbs
J5530 3/4 in. Drive 15/16 in. 12-Point Socket 1-7/16 in 1-7/16 in 3/4 in 1-1/16 in 2 in 0.51 lbs
J5560 3/4 in. Drive 1-7/8 in. 12-Point Socket 2-9/16 in 1-3/4 in 1-19/64 in 1-39/64 in 2-31/32 in 1.55 lbs
J5558 3/4 in. Drive 1-13/16 in. 12-Point Socket 2-9/16 in 1-3/4 in 1-1/4 in 1-39/64 in 2-29/32 in 1.41 lbs
J5570 3/4 in. Drive 2-3/16 in. 12-Point Socket 2-61/64 in 2-3/32 in 1-13/16 in 2-5/32 in 3-9/32 in 1.9 lbs
J5542 3/4 in. Drive 1-5/16 in. 12-Point Socket 1-7/8 in 1-19/32 in 27/32 in 1-5/32 in 2-9/32 in 0.89 lbs
J5548 3/4 in. Drive 1-1/2 in. 12-Point Socket 2-3/64 in 1-5/8 in 1 in 1-1/4 in 2-13/32 in 0.94 lbs
J5528 3/4 in. Drive 7/8 in. 12-Point Socket 1-5/16 in 1-5/16 in 45/64 in 1-1/16 in 2 in 0.46 lbs
J5526 3/4 in. Drive 13/16 in. 12-Point Socket 1-5/16 in 1-5/16 in 21/32 in 1-1/16 in 2 in 0.36 lbs
J5552 3/4 in. Drive 1-5/8 in. 12-Point Socket 2-15/64 in 1-3/4 in 1-7/64 in 1-15/16 in 2-5/8 in 1.03 lbs
J5544 3/4 in. Drive 1-3/8 in. 12-Point Socket 1-7/8 in 1-5/8 in 29/32 in 1-5/32 in 2-9/32 in 0.84 lbs
J5556 3/4 in. Drive 1-3/4 in. 12-Point Socket 2-3/8 in 1-3/4 in 1-13/64 in 1-15/32 in 2-3/4 in 1.3 lbs
J5532 3/4 in. Drive 1 in. 12-Point Socket 1-1/2 in 1-1/2 in 3/4 in 1-1/16 in 2 in 0.56 lbs
J5536 3/4 in. Drive 1-1/8 in. 12-Point Socket 1-37/64 in 1-15/32 in 25/32 in 1 in 2-7/32 in 0.72 lbs
J5538 3/4 in. Drive 1-3/16 in. 12-Point Socket 1-37/64 in 1-15/32 in 25/32 in 1 in 2-7/32 in 0.61 lbs
J5524 3/4 in. Drive 3/4 in. 12-Point Socket 1-5/16 in 1-5/16 in 19/32 in 1-1/16 in 2 in 0.35 lbs
J5576 3/4 in. Drive 2-3/8 in. 12-Point Socket 3-17/64 in 2-29/64 in 2-1/8 in 2-3/16 in 3-43/64 in 2.28 lbs
J5564 3/4 in. Drive 2 in. 12-Point Socket 2-47/64 in 2 in 1-3/4 in 1-3/4 in 3-7/64 in 1.59 lbs
J5540 3/4 in. Drive 1-1/4 in. 12-Point Socket 1-13/16 in 1-19/32 in 13/16 in 1-5/32 in 2-15/64 in 0.87 lbs
