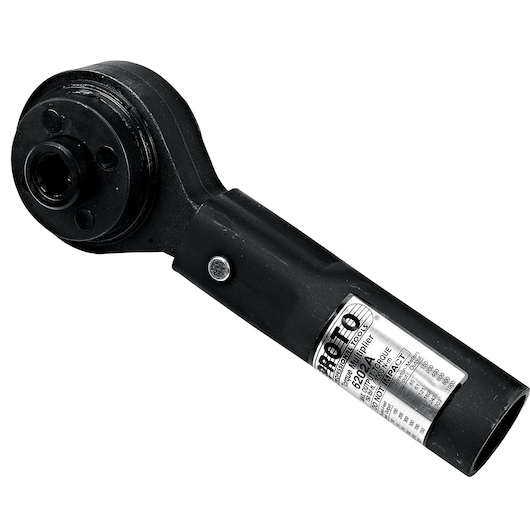

750 ft-lb Reaction Arm Torque Multiplier
J6202A
750 ft-lb Reaction Arm Torque Multiplier
- Maximum rated input: 250 ft-lbs (339 Nm)
- Maximum rated output: 750 ft-lbs (1017 Nm)
- Standard torque accuracy is +/- 5% of reading
Additional Features
- Reaction system: tubular reaction bar
- Gear system: single stage planetary
| SKU | Product Name | Output Drive [Imperial] | Torque Range [ft-lbs] | Torque Ratio | Head Depth [Imperial] | Head Length [Imperial] | Handle Length [Imperial] | Overall Length [Imperial] | Product Weight [Imperial] | Purchase |
|---|---|---|---|---|---|---|---|---|---|---|
| J6202ACERT | 750 ft-lb CERT Reaction Arm Torque Multiplier | 3/4 in | 250-750 | 1:3 | 3-3/32 in | 2-13/16 in | 5-1/4 in | 8-19/32 in | 4 lbs | |
| J6202A | 750 ft-lb Reaction Arm Torque Multiplier | 3/4 in | 250-750 | 1:3 | 3-3/32 in | 2-13/16 in | 5-1/4 in | 8-19/32 in | 4 lbs | |
| J6232CERT | 3200 ft-lb CERT Reaction Arm Torque Multiplier | 1 in | 173-3200 | 1:18.5 | 6-1/2 in | 4-1/16 in | 14-1/8 in | 19-19/32 in | 18.3 lbs | |
| J6212CERT | 1200 ft-lb CERT Reaction Arm Torque Multiplier | 3/4 in | 200-1200 | 1:6 | 4 in | 3-15/16 in | 14-1/8 in | 19-19/32 in | 9.1 lbs | |
| J6212 | 1200 ft-lb Reaction Arm Torque Multiplier | 3/4 in | 200-1200 | 1:6 | 4 in | 3-15/16 in | 14-1/8 in | 19-19/32 in | 9.1 lbs | |
| J6232 | 3200 ft-lb Reaction Arm Torque Multiplier | 1 in | 173-3200 | 1:18.5 | 6-1/2 in | 4-1/16 in | 14-1/8 in | 19-19/32 in | 18.3 lbs | |
| J6222 | 2200 ft-lb Reaction Arm Torque Multiplier | 1 in | 162-2200 | 1:13.6 | 5-3/4 in | 4-1/16 in | 14-1/8 in | 19-19/32 in | 15.2 lbs | |
| J6222CERT | 2200 ft-lb CERT Reaction Arm Torque Multiplier | 1 in | 162-2200 | 1:13.6 | 5-3/4 in | 4-1/16 in | 14-1/8 in | 19-19/32 in | 15.2 lbs |
