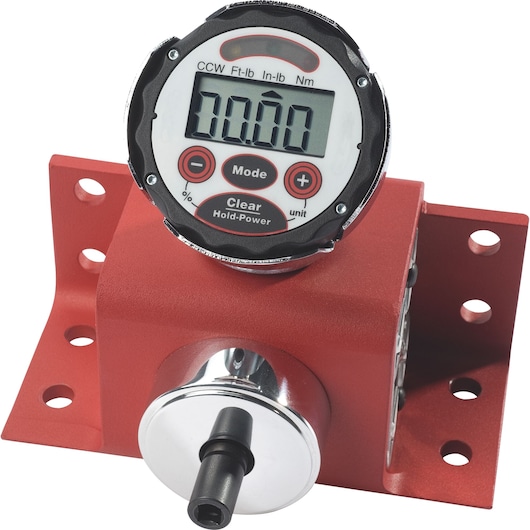

1/4 in. Drive Electronic Torque Tester
J6470
1/4 in. Drive Electronic Torque Tester
- Use to test all types of torque wrenches in all types of settings where full scale calibration is needed or where a quick Pass/Fail check is required
- Accuracy of +/- 1% of indicated value in both clockwise and counter clockwise directions
- Broad accuracy range extends from 10% to 100% of full scale
Additional Features
- Three units of measure are available ft-lb, in-lb, and Nm
- Three operating modes: Track Mode, Peak Hold and First Peak (for use with Click-style Torque wrenches)
- Fast sampling rate helps maintain high accuracy during torque applications
- Each tester is built with a male square drive and also comes supplied with a female-to-female square drive adapter
- Powered by a standard 9V battery, providing up to 50 hours run time
- N.I.S.T. (National Institute of Standards and Technology) traceable certification supplied with each tester
- Optional all-steel stand (J6470S) provides a strong support with minimal footprint
- Testers meet or exceed requirements set forth in ASME B107.29
| SKU | Product Name | Drive Size [Imperial] | Torque Range [ft-lbs] | Torque Range [in-lbs] | Increments [ft-lbs] | Increments [in-lbs] | Product Width [Imperial] | Product Height [Imperial] | Overall Length [Imperial] | Product Weight [Imperial] | Purchase |
|---|---|---|---|---|---|---|---|---|---|---|---|
| J6472 | 3/8 in. Drive Electronic Torque Tester | 3/8 in | 2.1-20.8 | 25-250 | 0.01 | 0.10 | 6 in | 4-1/2 in | 6 in | 6 lbs | |
| J6478 | 3/4 in. Drive Electronic Torque Tester | 3/4 in | 60-600 | 720-7200 | 0.10 | 1.00 | 6 in | 4-1/2 in | 6 in | 6 lbs | |
| J6470 | 1/4 in. Drive Electronic Torque Tester | 1/4 in | 0.42-4.17 | 5-50 | 0.01 | 0.01 | 6 in | 4-1/2 in | 6 in | 6 lbs | |
| J6474 | 3/8 in. Drive Electronic Torque Tester | 3/8 in | 5-50 | 60-600 | 0.01 | 0.10 | 6 in | 4-1/2 in | 6 in | 6 lbs | |
| J6476 | 1/2 in. Drive Electronic Torque Tester | 1/2 in | 25-250 | 300-3000 | 0.10 | 1.00 | 6 in | 4-1/2 in | 6 in | 6 lbs |
