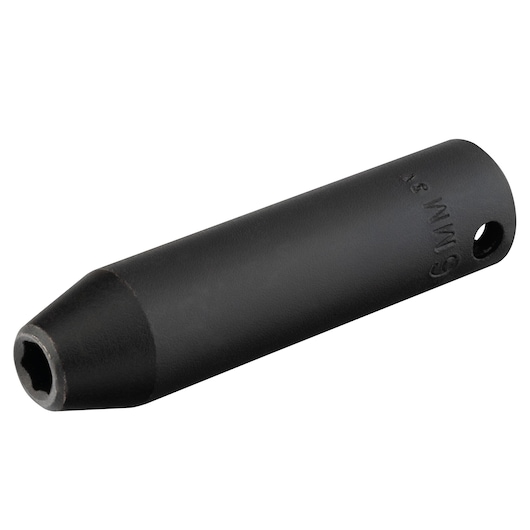

3/8 in. Drive 6mm 6-Point Deep Impact Socket
J7006M
3/8 in. Drive 6mm 6-Point Deep Impact Socket
- Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
Additional Features
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners
- Size stamped on tool for easy identification
- Side locking hole
| SKU | Product Name | Nut End Outside Diameter [Imperial] | Drive End Outside Diameter [Imperial] | Nut Depth [Imperial] | Bolt Clearance Depth [Imperial] | Overall Length [Imperial] | Product Weight [Imperial] | Purchase |
|---|---|---|---|---|---|---|---|---|
| J7016M | 3/8 in. Drive 16mm 6-Point Deep Impact Socket | 29/32 in | 29/32 in | 11/16 in | 2-1/4 in | 2-3/4 in | 0.29 lbs | |
| J7013M | 3/8 in. Drive 13mm 6-Point Deep Impact Socket | 3/4 in | 3/4 in | 15/32 in | 2-1/4 in | 2-3/4 in | 0.22 lbs | |
| J7022M | 3/8 in. Drive 22mm 6-Point Deep Impact Socket | 1-13/64 in | 1-13/64 in | 51/64 in | 2-1/4 in | 2-3/4 in | 0.49 lbs | |
| J7018M | 3/8 in. Drive 18mm 6-Point Deep Impact Socket | 1-1/32 in | 1-1/32 in | 11/16 in | 2-1/4 in | 2-3/4 in | 0.38 lbs | |
| J7007M | 3/8 in. Drive 7mm 6-Point Deep Impact Socket | 31/64 in | 11/16 in | 5/16 in | 2-1/4 in | 2-3/4 in | 0.2 lbs | |
| J7008M | 3/8 in. Drive 8mm 6-Point Deep Impact Socket | 33/64 in | 11/16 in | 5/16 in | 2-1/4 in | 2-3/4 in | 0.19 lbs | |
| J7017M | 3/8 in. Drive 17mm 6-Point Deep Impact Socket | 1 in | 1 in | 11/16 in | 2-1/4 in | 2-3/4 in | 0.37 lbs | |
| J7023M | 3/8 in. Drive 23mm 6-Point Deep Impact Socket | 1-1/4 in | 1-1/4 in | 51/64 in | 2-1/4 in | 2-3/4 in | 0.53 lbs | |
| J7024M | 3/8 in. Drive 24mm 6-Point Deep Impact Socket | 1-19/64 in | 1-19/64 in | 59/64 in | 2-1/4 in | 2-3/4 in | 0.58 lbs | |
| J7021M | 3/8 in. Drive 21mm 6-Point Deep Impact Socket | 1-5/32 in | 1-5/32 in | 25/32 in | 2-1/4 in | 2-3/4 in | 0.46 lbs | |
| J7006M | 3/8 in. Drive 6mm 6-Point Deep Impact Socket | 27/64 in | 11/16 in | 9/32 in | 2-1/4 in | 2-3/4 in | 0.19 lbs | |
| J7011M | 3/8 in. Drive 11mm 6-Point Deep Impact Socket | 11/16 in | 11/16 in | 13/32 in | 2-1/4 in | 2-3/4 in | 0.18 lbs | |
| J7020M | 3/8 in. Drive 20mm 6-Point Deep Impact Socket | 1-7/64 in | 1-7/64 in | 25/32 in | 2-1/4 in | 2-3/4 in | 0.42 lbs | |
| J7019M | 3/8 in. Drive 19mm 6-Point Deep Impact Socket | 1-1/16 in | 1-1/16 in | 11/16 in | 2-1/4 in | 2-3/4 in | 0.38 lbs | |
| J7014M | 3/8 in. Drive 14mm 6-Point Deep Impact Socket | 13/16 in | 13/16 in | 1/2 in | 2-1/4 in | 2-3/4 in | 0.22 lbs | |
| J7010M | 3/8 in. Drive 10mm 6-Point Deep Impact Socket | 5/8 in | 11/16 in | 3/8 in | 2-1/4 in | 2-3/4 in | 0.02 lbs | |
| J7015M | 3/8 in. Drive 15mm 6-Point Deep Impact Socket | 55/64 in | 55/64 in | 11/16 in | 2-1/4 in | 2-3/4 in | 0.25 lbs | |
| J7009M | 3/8 in. Drive 9mm 6-Point Deep Impact Socket | 37/64 in | 11/16 in | 3/8 in | 2-1/4 in | 2-3/4 in | 0.2 lbs | |
| J7012M | 3/8 in. Drive 12mm 6-Point Deep Impact Socket | 3/4 in | 3/4 in | 7/16 in | 2-1/4 in | 2-3/4 in | 0.2 lbs |
