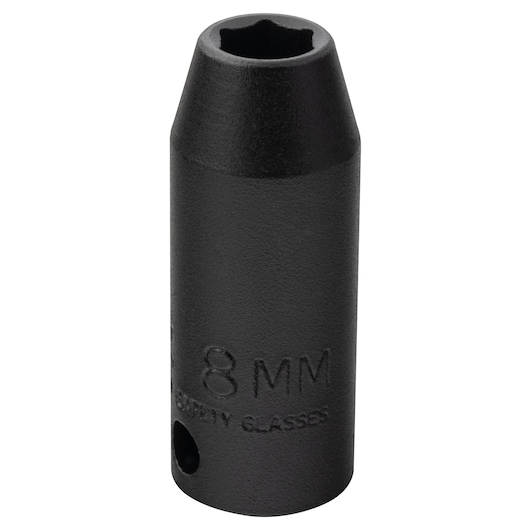

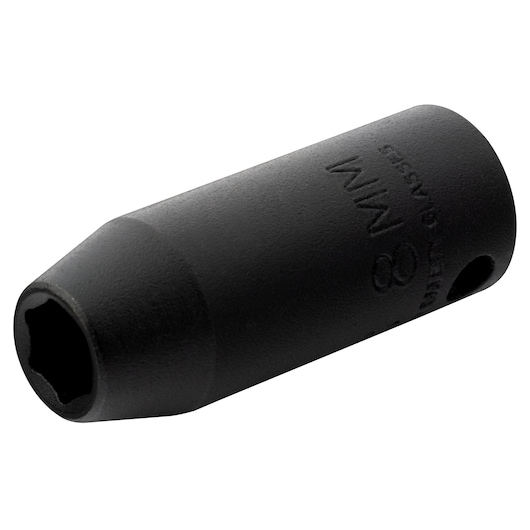

3/8 in. Drive 8mm 6-Point Deep Thin Wall Impact Socket
J7008MHT
3/8 in. Drive 8mm 6-Point Deep Thin Wall Impact Socket
- Specifically designed for light clearance applications
- Reduced wall thickness helps improve access to fasteners in restricted areas
- All Impact sockets feature one through hole and a groove to accept a retaining ring and pin to secure the socket to the power tool anvil
Additional Features
- Chamfered service ends for quick and positive fastener engagement
- Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners
- Thin wall sockets are lightweight
- Designed to fit into smaller spaces
- Thinner walls help improve productivity by making it easier to gain access to fasteners in confined spaces
- Extra deep length helps improve access in confined areas
- Often used in application where fasteners are close together, such as tire service
| SKU | Product Name | Nut End Outside Diameter [Imperial] | Drive End Outside Diameter [Imperial] | Nut Depth [Imperial] | Bolt Clearance Depth [Imperial] | Overall Length [Imperial] | Product Weight [Imperial] | Purchase |
|---|---|---|---|---|---|---|---|---|
| J7010MHT | 3/8 in. Drive 10mm 6-Point Deep Thin Wall Impact Socket | 19/32 in | 11/16 in | 11/32 in | 1-5/32 in | 1-3/4 in | 0.11 lbs | |
| J7012MHT | 3/8 in. Drive 12mm 6-Point Deep Thin Wall Impact Socket | 11/16 in | 11/16 in | 3/8 in | 1-1/8 in | 1-3/4 in | 0.11 lbs | |
| J7014MHT | 3/8 in. Drive 14mm 6-Point Deep Thin Wall Impact Socket | 25/32 in | 25/32 in | 15/32 in | 1-1/32 in | 2 in | 0.14 lbs | |
| J7017MHT | 3/8 in. Drive 17mm 6-Point Deep Thin Wall Impact Socket | 1 in | 1 in | 1/2 in | 1 in | 2-5/64 in | 0.2 lbs | |
| J7018MHT | 3/8 in. Drive 18mm 6-Point Deep Thin Wall Impact Socket | 31/32 in | 31/32 in | 1/2 in | 1 in | 2-5/64 in | 0.2 lbs | |
| J7009MHT | 3/8 in. Drive 9mm 6-Point Deep Thin Wall Impact Socket | 17/32 in | 11/16 in | 5/16 in | 1-3/16 in | 1-3/4 in | 0.15 lbs | |
| J7015MHT | 3/8 in. Drive 15mm 6-Point Deep Thin Wall Impact Socket | 53/64 in | 53/64 in | 1/2 in | 1 in | 2-5/64 in | 0.18 lbs | |
| J7011MHT | 3/8 in. Drive 11mm 6-Point Deep Thin Wall Impact Socket | 11/16 in | 11/16 in | 21/64 in | 1-11/64 in | 1-3/4 in | 0.12 lbs | |
| J7008MHT | 3/8 in. Drive 8mm 6-Point Deep Thin Wall Impact Socket | 31/64 in | 11/16 in | 1/4 in | 1-1/4 in | 1-3/4 in | 0.11 lbs | |
| J7019MHT | 3/8 in. Drive 19mm 6-Point Deep Thin Wall Impact Socket | 1 in | 1 in | 17/32 in | 31/32 in | 2-5/64 in | 0.25 lbs | |
| J7013MHT | 3/8 in. Drive 13mm 6-Point Deep Thin Wall Impact Socket | 45/64 in | 45/64 in | 13/32 in | 1-3/32 in | 1-3/4 in | 0.11 lbs | |
| J7016MHT | 3/8 in. Drive 16mm 6-Point Deep Thin Wall Impact Socket | 7/8 in | 7/8 in | 1/2 in | 1 in | 2-5/64 in | 0.17 lbs |
