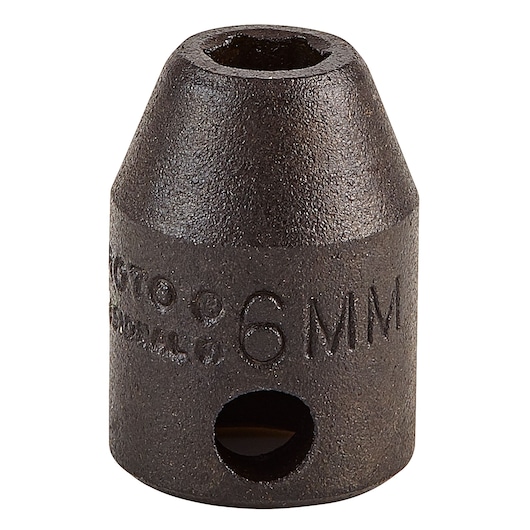

3/8 in. Drive 6mm 6-Point Impact Socket
J7206M
3/8 in. Drive 6mm 6-Point Impact Socket
- Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
Additional Features
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners
- Socket size stamped on tool for easy identification
- Side locking hole
| SKU | Product Name | Nut End Outside Diameter [in] | Drive End Outside Diameter [in] | Nut Depth [in] | Bolt Clearance Depth [in] | Overall Length [in] | Product Weight [lbs] | Purchase |
|---|---|---|---|---|---|---|---|---|
| J7206M | 3/8 in. Drive 6mm 6-Point Impact Socket | 27/64 | 11/16 | 7/32 | 27/64 | 59/64 | 0.06 | |
| J7207M | 3/8 in. Drive 7mm 6-Point Impact Socket | 31/64 | 11/16 | 15/64 | 27/64 | 59/64 | 0.06 | |
| J7208M | 3/8 in. Drive 8mm 6-Point Impact Socket | 33/64 | 11/16 | 5/16 | 17/32 | 1-1/32 | 0.06 | |
| J7209M | 3/8 in. Drive 9mm 6-Point Impact Socket | 37/64 | 11/16 | 11/32 | 17/32 | 1-1/32 | 0.06 | |
| J7210M | 3/8 in. Drive 10mm 6-Point Impact Socket | 11/16 | 11/16 | 3/8 | 17/32 | 1-1/32 | 0.06 | |
| J7211M | 3/8 in. Drive 11mm 6-Point Impact Socket | 11/16 | 11/16 | 13/32 | 17/32 | 1-1/32 | 0.06 | |
| J7212M | 3/8 in. Drive 12mm 6-Point Impact Socket | 23/32 | 23/32 | 7/16 | 17/32 | 1-1/32 | 0.07 | |
| J7213M | 3/8 in. Drive 13mm 6-Point Impact Socket | 3/4 | 3/4 | 7/16 | 17/32 | 1-3/32 | 0.08 | |
| J7214M | 3/8 in. Drive 14mm 6-Point Impact Socket | 13/16 | 13/16 | 9/16 | 19/32 | 1-3/32 | 0.09 | |
| J7215M | 3/8 in. Drive 15mm 6-Point Impact Socket | 55/64 | 55/64 | 9/16 | 19/32 | 1-3/32 | 0.1 | |
| J7216M | 3/8 in. Drive 16mm 6-Point Impact Socket | 29/32 | 29/32 | 9/16 | 19/32 | 1-3/32 | 0.12 | |
| J7217M | 3/8 in. Drive 17mm 6-Point Impact Socket | 1 | 1 | 9/16 | 19/32 | 1-3/32 | 0.15 | |
| J7218M | 3/8 in. Drive 18mm 6-Point Impact Socket | 1-1/32 | 1-1/32 | 9/16 | 19/32 | 1-3/32 | 0.16 | |
| J7219M | 3/8 in. Drive 19mm 6-Point Impact Socket | 1-1/16 | 1-1/16 | 17/32 | 19/32 | 1-3/32 | 0.15 | |
| J7220M | 3/8 in. Drive 20mm 6-Point Impact Socket | 1-7/64 | 1-7/64 | 17/32 | 19/32 | 1-3/32 | 0.18 | |
| J7221M | 3/8 in. Drive 21mm 6-Point Impact Socket | 1-5/32 | 1-5/32 | 17/32 | 19/32 | 1-3/32 | 0.19 | |
| J7222M | 3/8 in. Drive 22mm 6-Point Impact Socket | 1-13/64 | 1-13/64 | 17/32 | 19/32 | 1-3/32 | 0.2 | |
| J7223M | 3/8 in. Drive 23mm 6-Point Impact Socket | 1-1/4 | 1-1/4 | 17/32 | 19/32 | 1-3/32 | 0.26 | |
| J7224M | 3/8 in. Drive 24mm 6-Point Impact Socket | 1-19/64 | 1-19/64 | 17/32 | 19/32 | 1-3/32 | 0.27 |
