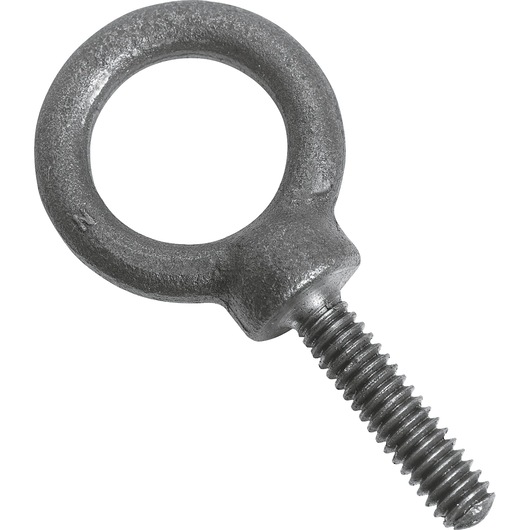

1/4 in. - 20 Thread Forged Eye Bolt
Discontinued J94020
1/4 in. - 20 Thread Forged Eye Bolt
- Maximum load ratings for eye bolts are drastically reduced when loading at an angle
- Angular loads should be avoided whenever possible
- For angular loads of 15° or more, consult B18.15
Additional Features
- Certified mercury free
| SKU | Product Name | Shank Length [Imperial] | Hole Diameters | Overall Length [Imperial] | Product Length [Imperial] | Weight Capacity [Imperial] | Product Weight [Imperial] | Purchase |
|---|---|---|---|---|---|---|---|---|
| J94032 | 1-1/2 in. - 6 Thread Forged Eye Bolt | 3.5 in | Eye Inner - 2.44-2.56 in., Eye Outside - 5.19 in. | 9-9/41 - 9-18/25 in | Center Eye to Shoulder -3.19-3.44 in. in | 21000 lbs | 7.36 lbs | |
| J94027 | 3/4 in. - 10 Thread Forged Eye Bolt | 2 in | Eye Inner - 1.44-1.56 in., Eye Outside - 2.81 in. | 5 - 5-1/2 in | Center Eye to Shoulder -1.72-1.91 in. in | 5000 lbs | 1 lbs | |
| J94033 | 1-3/4 in. - 5 Thread Forged Eye Bolt | 3.75 in | Eye Inner - 2.75-3.00 in., Eye Outside - 6.00 in. | 10-1/2 - 11-3/25 | Center Eye to Shoulder -3.88-4.12 in. in | 28000 lbs | 11.35 lbs | |
| J94029 | 1 in. - 8 Thread Forged Eye Bolt | 2.5 in | Eye Inner - 1.69-1.81 in., Eye Outside - 3.56 in. | 6 - 6-22/25 in | Center Eye to Shoulder -2.22-2.41 in. in | 9000 lbs | 2.22 lbs | |
| J94026 | 5/8 in. - 11 Thread Forged Eye Bolt | 1.75 in | Eye Inner - 1.31-1.44 in., Eye Outside - 2.56 in. | 4-14/25 - 4-47/50 in | Center Eye to Shoulder -1.59-1.72 in. in | 4000 lbs | 1 lbs | |
| J94021 | 5/16 in. - 18 Thread Forged Eye Bolt | 1.12 in | Eye Inner - .81-.94 in., Eye Outside - 1.44 in. | 2-33/50 - 2-32/33 in | Center Eye to Shoulder - .88-1.00 in. in | 900 lbs | 0.1 lbs | |
| J94023 | 7/16 in. - 14 Thread Forged Eye Bolt | 1.38 in | Eye Inner - 1.00-1.12 in., Eye Outside - 1.81 in. | 3-16/39 - 3-32/41 in | Center Eye to Shoulder -1.19-1.31 in. in | 1800 lbs | 0.24 lbs | |
| J94025 | 9/16 in. - 12 Thread Forged Eye Bolt | 1.75 in | Eye Inner - 1.31-1.44 in., Eye Outside - 2.56 in. | 4-14/25 - 4-47/50 in | Center Eye to Shoulder -1.59-1.72 in. in | 3200 lbs | 0.47 lbs | |
| J94031 | 1-1/4 in. - 7 Thread Forged Eye Bolt | 3 in | Eye Inner - 2.12-2.25 in., Eye Outside - 4.44 in. | 8-9/17 - 8-11/25 in | Center Eye to Shoulder -3.03-2.84 in. in | 15000 lbs | 4.44 lbs | |
| J94022 | 3/8 in. - 16 Thread Forged Eye Bolt | 1.25 in | Eye Inner - .94-1.06 in., Eye Outside - 1.69 in. | 3-1/11 - 3-8/17 in | Center Eye to Shoulder -1.06-1.09 in. in | 1300 lbs | 0.16 lbs | |
| J94028 | 7/8 in. - 9 Thread Forged Eye Bolt | 2.25 in | Eye Inner - 1.56-1.69 in., Eye Outside - 3.19 in. | 5-3/4 - 6-4/21 in | Center Eye to Shoulder -2.03-2.22 in. in | 7000 lbs | 1.63 lbs | |
| J94030 | 1-1/8 in. - 7 Thread Forged Eye Bolt | 2.75 in | Eye Inner - 1.94-2.06 in., Eye Outside - 4.06 in. | 7-11/25 - 7-3/4 in | Center Eye to Shoulder -2.59-2.78 in. in | 12000 lbs | 3.4 lbs | |
| J94020 | 1/4 in. - 20 Thread Forged Eye Bolt | 1 in | Eye Inner - .69-.81 in., Eye Outside - 1.19 in. | 2-9/41 - 2-9/17 in | Center Eye to Shoulder - .69-.81 in. in | 500 lbs | 0.05 lbs | |
| J94024 | 1/2 in. - 13 Thread Forged Eye Bolt | 1.5 in | Eye Inner - 1.12-1.25 in., Eye Outside - 2.12 in. | 3-17/21 - 4-4/21 in | Center Eye to Shoulder -1.316-1.44 in. in | 2400 lbs | 0.35 lbs |
