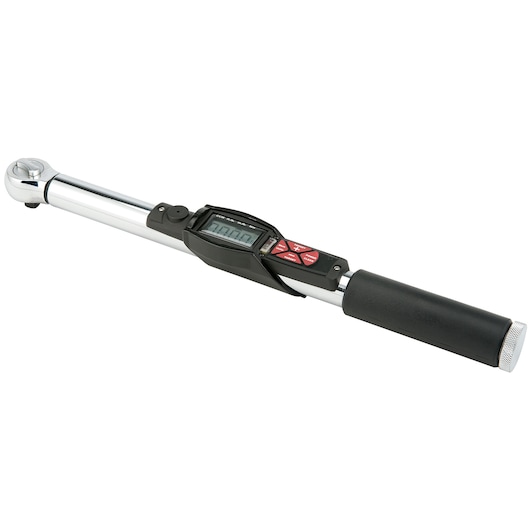

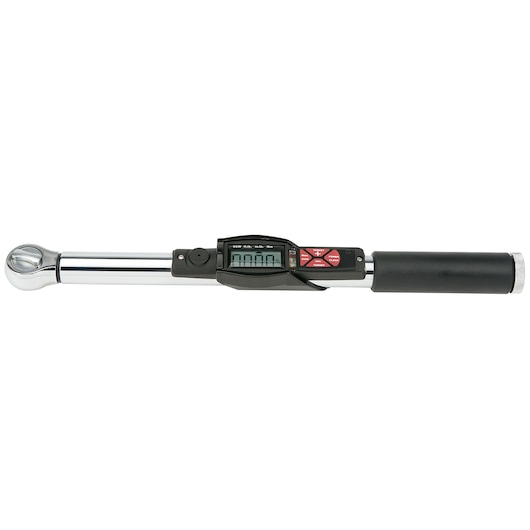

H4 Tang Electronic Interchangeable Head Torque Wrench Assembly

Full interface with Proto® Interchangeable Head Attachments
Accuracy of +/- 2% of indicated value in both clockwise and counter clockwise directions
Broad accuracy range extends from 10% to 100% of Full Scale to help reduce the number of torque wrenches required

Additional Features

Ninety-nine "on-board" memory storage locations help improve efficiency when taking multiple torque readings
Three units of measure are available (Ft-lb, In-lb, and Nm)
Three operating modes: Track Mode, Peak Hold and Auto Clear
Fast sampling rate helps maintain high accuracy during torque applications
Torque wrench head rotates to allow for easy viewing of LCD display
Easy to read LCD Display with large digits
3-way Red/Green/Yellow lights
Yellow light appears at the low end of the zone
Green light appears and buzzer sounds when the target is reached
Red light appears with intermittent buzzer when it is over torqued
Audible buzzer helps identify when desired torque target zones are approaching and met
Target torque zone is adjustable from 1% to 10% of targeted torque value
Meets or exceeds ASME B107.28

SKU	Product Name	Torque Range [ft-lbs]	Torque Range [in-lbs]	Increments [ft-lbs]	Increments [in-lbs]	Product Width [Imperial]	Product Height [Imperial]	Overall Length [Imperial]	Product Weight [Imperial]
JH5-100F	H5 Tang Electronic Interchangeable Head Torque Wrench Assembly	10-100	120-1200	0.10	1.00	1-3/4 in	2 in	17-1/4 in	2.4 lbs
JH4-250	H4 Tang Electronic Interchangeable Head Torque Wrench Assembly	2.1-20.8	25-250	0.01	0.10	1-3/4 in	2 in	17-1/4 in	2.2 lbs
JH7-250F	H7 Tang Electronic Interchangeable Head Torque Wrench Assembly	25-250	300-3000	0.10	1.00	1-3/4 in	2 in	23 in	3 lbs
