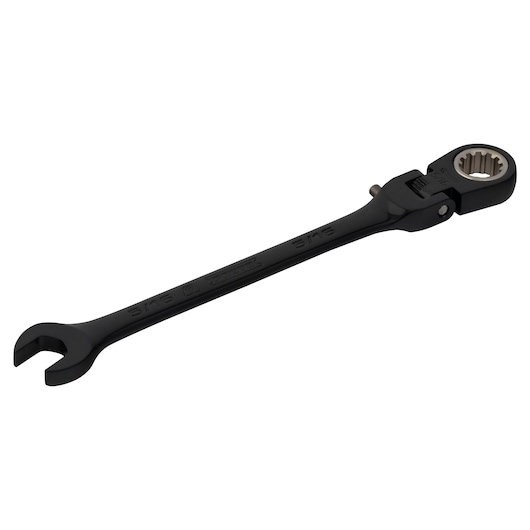

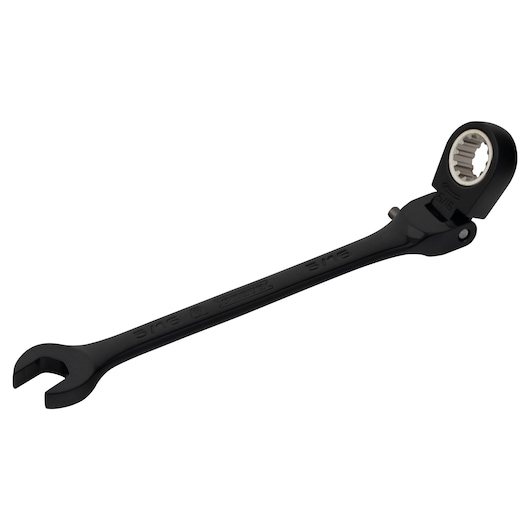

5/16 in. Locking Flex-Head Combination Ratcheting Spline Wrench
JSCV10F
5/16 in. Locking Flex-Head Combination Ratcheting Spline Wrench
- 15° angled offset helps keep shank clear of obstructions
- Chrome-vanadium box ends and switch levers provide high strength and durability
- Box end is countersunk for easy application to the fastener
Additional Features
- Spline design was created for use with specialty spline bolts which are used when weight and size of bolt heads must be minimized
- Spline design enables the wrench to contact conventional fasteners away from the corners, which applies force over a larger area, reducing risk of fastener scoring and helps prevent rounding of the corners and other fasteners damage that could lead to Foreign Object Damage (FOD)
- The high contact surface area which is away from fastener points enables turning of highly rounded fastener
- Anti-Slip Design (ASD) open end
- Black chrome finish is corrosion resistant and visually distinctive
- 72 tooth ratcheting mechanism rotates fast with only 5 degrees of swing
- Spline wrenches can be used on 4, 6, 12 point, spline and Torx® fasteners
| SKU | Product Name | Outside Head Width 1 [Imperial] | Head Thickness 1 [Imperial] | Outside Head Width 2 [Imperial] | Head Thickness 2 [Imperial] | Overall Length [Imperial] | Product Weight [Imperial] | Purchase |
|---|---|---|---|---|---|---|---|---|
| JSCV16F | 1/2 in. Locking Flex-Head Combination Ratcheting Spline Wrench | 1-1/16 in | 1-15/64 in | 1-3/32 in | 11/32 in | 6 in | 0.2 lbs | |
| JSCV18F | 9/16 in. Locking Flex-Head Combination Ratcheting Spline Wrench | 1-9/64 in | 3/8 in | 1-1/16 in | 23/64 in | 6-1/4 in | 0.29 lbs | |
| JSCV22F | 11/16 in. Locking Flex-Head Combination Ratcheting Spline Wrench | 1-25/64 in | 19/64 in | 13/32 in | 1-7/32 in | 7-1/2 in | 0.46 lbs | |
| JSCV14F | 7/16 in. Locking Flex-Head Combination Ratcheting Spline Wrench | 57/64 in | 13/64 in | 27/32 in | 5/16 in | 5-9/16 in | 0.19 lbs | |
| JSCV24F | 3/4 in. Locking Flex-Head Combination Ratcheting Spline Wrench | 1-35/64 in | 11/32 in | 1-21/64 in | 7/16 in | 8-1/2 in | 0.57 lbs | |
| JSCV10F | 5/16 in. Locking Flex-Head Combination Ratcheting Spline Wrench | 19/32 in | 9/32 in | 41/64 in | 17/64 in | 5 in | 0.16 lbs | |
| JSCV20F | 5/8 in. Locking Flex-Head Combination Ratcheting Spline Wrench | 1-5/16 in | 13/32 in | 1-3/16 in | 25/64 in | 7 in | 0.33 lbs | |
| JSCV12F | 3/8 in. Locking Flex-Head Combination Ratcheting Spline Wrench | 13/16 in | 13/64 in | 7/8 in | 9/32 in | 5-3/8 in | 0.17 lbs |
