JSCVM08F
8mm Locking Flex-Head Combination Ratcheting Wrench - Spline
PROTO JSCVM08F black ratcheting combination wrench with flex head, side view, on white background.
PROTO JSCVM08F black ratcheting combination wrench, open and box end, side view on white background.
PROTO JSCVM08F black ratcheting combination wrench with flex head, side view on white background.
PROTO JSCVM08F black ratcheting combination wrench, side angle on white background.
PROTO JSCVM08F black ratcheting combination wrench side view on white background.

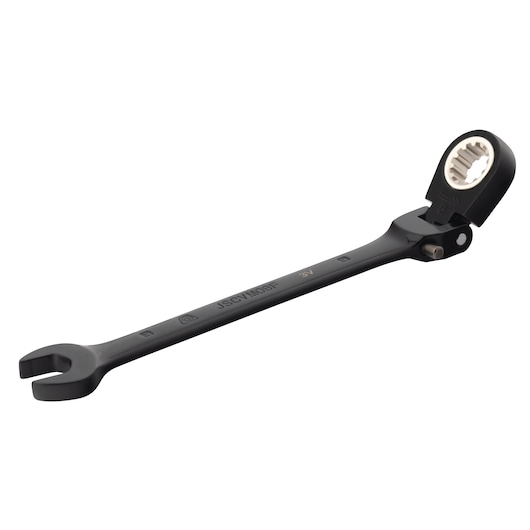

PROTO JSCVM08F black ratcheting combination wrench, angled view on white background.
JSCVM08F

8mm Locking Flex-Head Combination Ratcheting Wrench - Spline

  • 15° angled offset helps keep shank clear of obstructions
  • Spline wrenches can be used on 4, 6, 12 point, spline and Torx® fasteners
  • Chrome-vanadium box ends and switch levers provide high strength and durability
View more features

Additional Features

  • Box end is countersunk for easy application to the fastener
  • Spline design was created for use with specialty spline bolts which are used when weight and size of bolt heads must be minimized
  • Spline design enables the wrench to contact conventional fasteners away from the corners, which applies force over a larger area, reducing risk of fastener scoring and helps prevent rounding of the corners and other fasteners damage that could lead to Foreign Object Damage (FOD)
  • The high contact surface area which is away from fastener points enables turning of highly rounded fastener
  • Anti-Slip Design (ASD) open end
  • Black chrome finish is corrosion resistant and visually distinctive
  • 72 tooth ratcheting mechanism rotates fast with only 5 degrees of swing
SKU Product Name Outside Head Width 1 [in] Head Thickness 1 [in] Outside Head Width 2 [in] Head Thickness 2 [in] Overall Length [in] Product Weight [lbs] Purchase
JSCVM08F 8mm Locking Flex-Head Combination Ratcheting Wrench - Spline 41/64 9/32 21/32 17/64 5 0.13
JSCVM09F 9mm Locking Flex-Head Combination Ratcheting Wrench - Spline 47/64 3/32 21/32 9/32 5-13/64 0.16
JSCVM10F 10mm Locking Flex-Head Combination Ratcheting Wrench - Spline 13/16 13/64 51/64 9/32 5-3/8 0.16
JSCVM11F 11mm Locking Flex-Head Combination Ratcheting Wrench - Spline 57/64 13/64 55/64 5/16 5-1/2 0.17
JSCVM12F 12mm Locking Flex-Head Combination Ratcheting Wrench - Spline 63/64 11/32 57/64 21/64 5-25/32 0.19
JSCVM13F 13mm Locking Flex-Head Combination Ratcheting Wrench - Spline 1-1/16 15/64 1 11/32 6 0.19
JSCVM14F 14mm Locking Flex-Head Combination Ratcheting Wrench - Spline 1-9/64 3/8 1-3/64 23/64 6-1/2 0.21
JSCVM15F 15mm Locking Flex-Head Combination Ratcheting Wrench - Spline 1-3/16 1/4 1-3/32 3/8 6-3/4 0.25
JSCVM16F 16mm Locking Flex-Head Combination Ratcheting Wrench - Spline 1-21/64 13/32 1-11/64 25/64 7 0.3
JSCVM17F 17mm Locking Flex-Head Combination Ratcheting Wrench - Spline 1-25/64 19/64 1-1/4 13/32 7-1/2 0.33
JSCVM18F 18mm Locking Flex-Head Combination Ratcheting Wrench - Spline 1-15/32 7/16 1-9/32 27/64 8 0.36
JSCVM19F 19mm Locking Flex-Head Combination Ratcheting Wrench - Spline 1-35/64 11/32 1-21/64 7/16 8-1/2 0.45
